13A Series Circuit Board Support: .062 Thick PCB x .062 Thick Chassis
13A Series Circuit Board Support: .062 Thick PCB x .062 Thick Chassis
SKU:01C-012fd6
Durable 13A Series Circuit Board Support for .062'' PCBs & Chassis. Snap-fit design, RoHS compliant, temp range -40 to 185°F.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
13A Series Circuit Board Support: .062 Thick PCB x .062 Thick Chassis
$29.99
Quantity: 1
Claim Your Seller Account
13A Series Circuit Board Support: .062 Thick PCB x .062 Thick Chassis
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

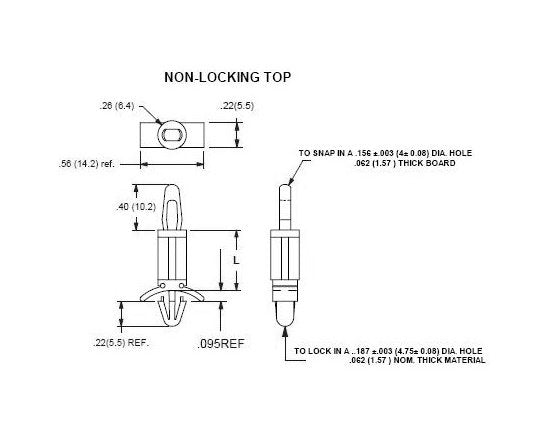

The 13A Series Circuit Board Support is designed for use with .062-inch thick PCBs and chassis, providing secure support for your electronic components. Snap-fit into the PCB for stability and easy installation, while locking securely into the chassis. Made from Nylon 66 UL94V-2 material (UL94V-0 available), this support is RoHS compliant and can withstand temperatures ranging from -40 to 185°F (-40 to 85°C). With precise dimensions and sturdy construction, this support ensures reliable performance in various applications.
Product Specifications
Specifications Board Thickness
.062 (1.57) inches (mm)
Specifications Chassis Thickness
.062 (1.57) inches (mm)
Specifications Dim L 015
.625 (15.9) inches (mm)
