13A Series Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
13A Series Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
SKU:01C-8f9434
Reliable 13A Series Circuit Board Supports for .062 thick PCBs & chassis. Snap fit, lock into place. Pack of 500, ASTM & RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
13A Series Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
13A Series Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

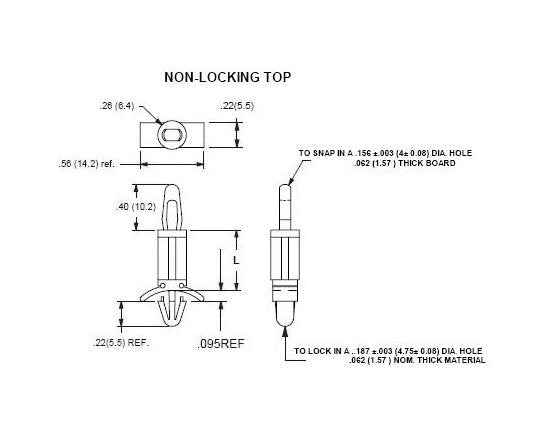

The 13A Series Circuit Board Supports are designed for .062 thick PCBs and chassis, providing reliable support for your electronic components. Made from Nylon 66 UL94V-2 material (UL94V-0 available), these supports ensure secure mounting with a snap fit into the PCB and locking into the chassis. With a temperature range of -40 to 185F (-40 to 85C), these supports offer durability and stability in various operating conditions. Each pack contains 500 supports, meeting ASTM D 4066 and RoHS compliance standards for your peace of mind.
Product Specifications
Specifications Board Thickness
.062 (1.57) inches (mm)
Specifications Chassis Thickness
.062 (1.57) inches (mm)
Specifications Dim L 015
1.12 (28.6) inches (mm)
