13A Series PCB Support Kit
13A Series PCB Support Kit
SKU:01C-ce3469
Sturdy and reliable 13A Series PCB Support Kit for .062 thick PCBs and Chassis. Snap fit design, RoHS compliant, ASTM D 4066, PA111 standards. Pack of 500.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
13A Series PCB Support Kit
$29.99
Quantity: 1
Claim Your Seller Account
13A Series PCB Support Kit
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

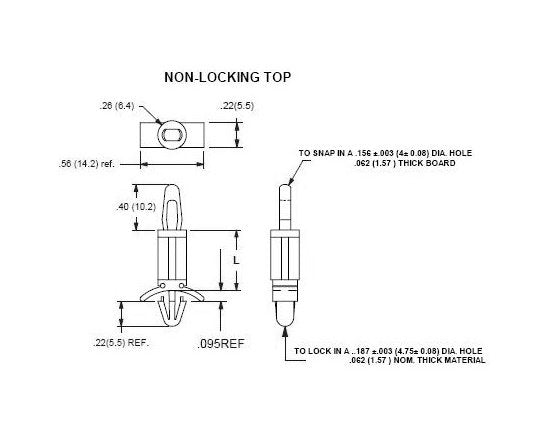

The 13A Series PCB Support Kit is designed for .062 thick PCBs and Chassis. Made of high-quality Nylon 66 UL94V-2 material (UL94V-0 available), these circuit board supports snap fit into PCBs and lock securely into chassis, providing reliable stability. With a temperature range of -40 to 185F, these supports offer durability and performance in various environments. Each kit includes 500 supports, making them ideal for bulk installations. Compliant with RoHS regulations, ASTM D 4066, and PA111 standards.
Product Specifications
Specifications Board Thickness
.062 (1.57) inches (mm)
Specifications Chassis Thickness
.062 (1.57) inches (mm)
Specifications Dim L 015
.312 (7.9) inches (mm)
