13L Series Circuit Board Supports
13L Series Circuit Board Supports
SKU:01C-b4452e
Durable 13L Series Circuit Board Supports with .156 PCB Hole x .187 Chassis Hole, UL94V-2 Material, and RoHS Compliance. Ideal for secure PCB mounting.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
13L Series Circuit Board Supports
$25.99
Quantity: 1
Claim Your Seller Account
13L Series Circuit Board Supports
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

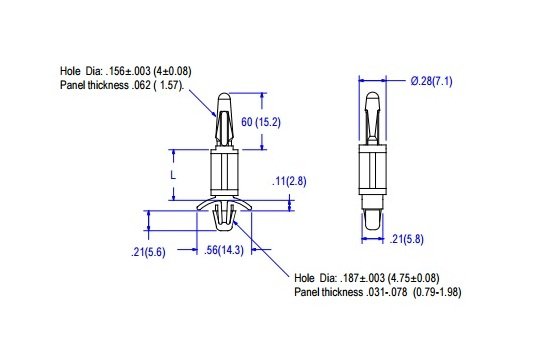

The 13L Series Circuit Board Supports feature a .156-inch PCB Hole and .187-inch Chassis Hole in a Long Nose Style, providing extended height through the PCB Mounting Hole. Made of Nylon 66 UL94V-2 material (UL94V-0 available) and compliant with UL File No. E70062, ASTM D 4066, PA111, and RoHS standards, these supports offer a temperature range of -40 to 185F (-40 to 85C). Designed with precision, they measure .750 inches (19.1 mm) in length, ensuring secure and reliable circuit board mounting. Ideal for both consumer and institutional applications requiring durability and compliance with industry standards.
Product Specifications
Specifications Dim L 015 4 Mm
.750 (19.1) inches (mm)
