13L Series Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
13L Series Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
SKU:01C-e11576
Enhance PCB assembly with 13L Series Circuit Board Supports - .156 PCB Hole, .187 Chassis Hole. RoHS compliant, durable Nylon 66 material.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
13L Series Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Claim Your Seller Account
13L Series Circuit Board Supports - .156 Board Hole x .187 Chassis Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your PCB assembly with the 13L Series Circuit Board Supports featuring .156 PCB Hole and .187 Chassis Hole dimensions. This Long Nose style support offers extended height through the PCB mounting hole, ensuring secure and reliable installations. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports comply with UL File No E70062, ASTM D 4066, PA111, and are RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), these supports provide durability and stability for your electronic applications.
Product Specifications

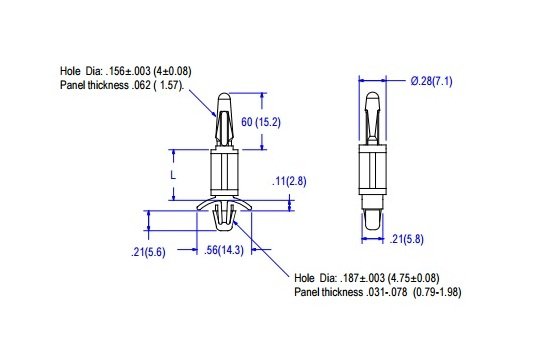

Specifications Dim L 015 4 Mm
.187 (4.8) inches (mm)
