13L Series Circuit Board Supports
13L Series Circuit Board Supports
SKU:01C-c49163
High-quality 13L Series Circuit Board Supports for secure .156 PCB Hole x .187 Chassis Hole applications. RoHS compliant and precise dimensions for reliable installations.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
13L Series Circuit Board Supports
$29.99
Quantity: 1
Claim Your Seller Account
13L Series Circuit Board Supports
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

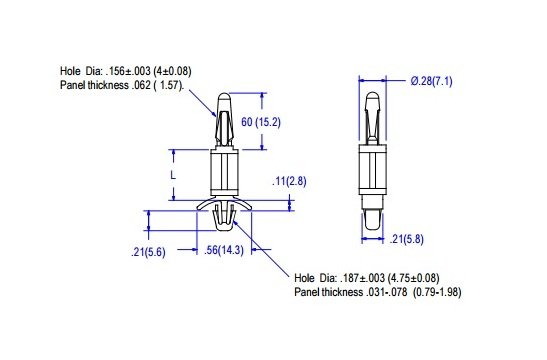

The 13L Series Circuit Board Supports are designed for .156 PCB Hole x .187 Chassis Hole applications, featuring a Long Nose Style with extended height through the PCB mounting hole. Made of Nylon 66 UL94V-2 material (UL94V-0 available), these supports come in packaging of 1000 pieces per bag. They are RoHS compliant and meet ASTM D 4066, PA111 standards, with a temperature range of -40 to 185F (-40 to 85C). The dimensions are precise at .375 inches (9.5mm) +/- .015 (.4mm), ensuring secure and stable installations on circuit boards and chassis.
Product Specifications
Specifications Dim L 015 4 Mm
.375 (9.5) inches (mm)
