13mm UM10 Grade Precision Ground Carbide Hole Rod
13mm UM10 Grade Precision Ground Carbide Hole Rod
SKU:SOL-530052
High-precision 13mm UM10 Grade Carbide Hole Rod for accuracy and durability. Meets ISO h6 tolerance standards.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
13mm UM10 Grade Precision Ground Carbide Hole Rod
$45.99
Quantity: 1
Claim Your Seller Account
13mm UM10 Grade Precision Ground Carbide Hole Rod
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

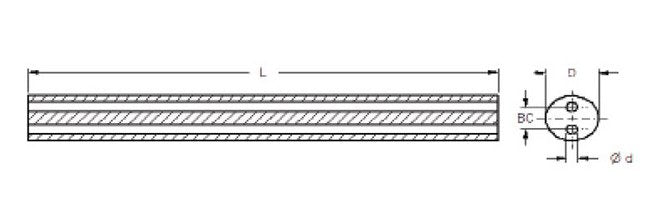

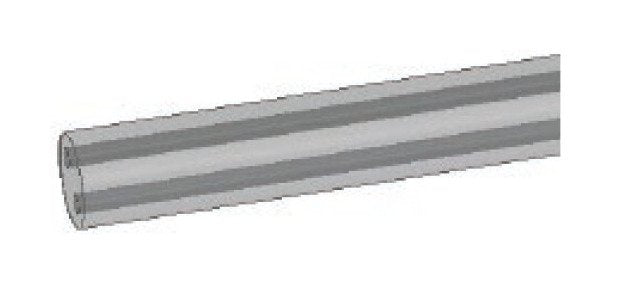

Experience unmatched precision with our 13mm UM10 Grade Precision Ground Carbide Hole Rod. This rod boasts a polished finish, 330mm length with a tolerance of +5mm/0mm, and a 1.20mm hole diameter. The Between Centers (BC) Diameter of 3.5mm adheres to strict industry standards. Made of high-quality carbide, this rod is ideal for applications requiring exceptional accuracy and durability. With an ISO tolerance type of h6, this rod guarantees reliable performance under demanding conditions.
Product Specifications
Classifications Between Centers Bc Diameter
3.5 mm
Classifications Between Centers Bc Diameter Tolerance
0/-0.30 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
13.00 mm
Classifications Finish
Polished
Classifications Hole D
1.20 mm
Classifications Hole D Tolerance
0.15 mm
Classifications International Organization For Standardization I
h6
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Shipping Weight
0.692869849 Kilogram
