14.30mm UM10 Grade Three Hole Carbide Rod
14.30mm UM10 Grade Three Hole Carbide Rod
SKU:SOL-cb852d
High-performance 14.30mm UM10 Grade Carbide Rod for industrial machining needs. Durable, reliable & precise.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
14.30mm UM10 Grade Three Hole Carbide Rod
$99.99
Quantity: 1
Claim Your Seller Account
14.30mm UM10 Grade Three Hole Carbide Rod
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

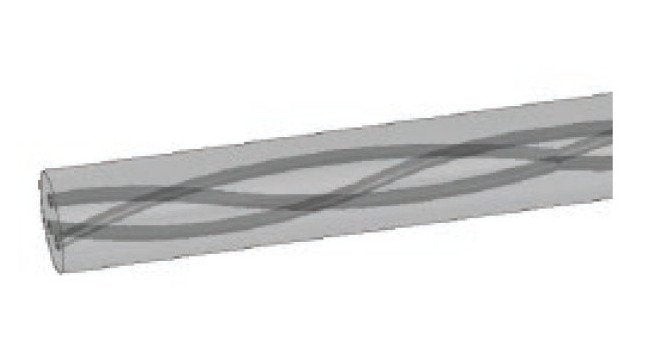

The 14.30mm UM10 Grade Three Hole 30 Degree Unground Carbide Rod is a precision-engineered tool designed for high-performance applications in industrial settings. With a diameter of 14.30mm and a length of 330mm (+5mm | 0mm tolerance), this carbide rod ensures exceptional durability and reliability. The UM10 carbide grade guarantees superior wear resistance and strength, making it ideal for heavy-duty machining operations. The three-hole design with a 30-degree angle enhances chip evacuation, maintaining cutting efficiency. Fulfilling stringent industry standards, this carbide rod is a top choice for businesses seeking quality and performance.

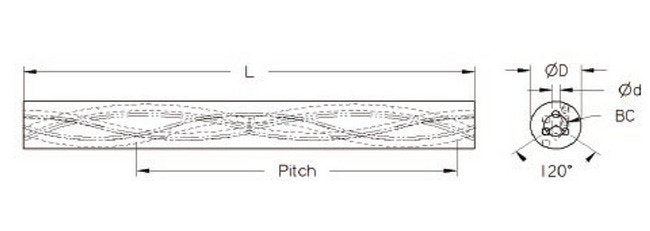

Product Specifications
Classifications Between Centers Bc Diameter
7.05 mm
Classifications Between Centers Bc Diameter Tolerance
±0.40 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM10
Classifications Diameter
14.30 mm
Classifications Finish
Unground
Classifications Hole D
1.40 mm
Classifications Hole D Tolerance
0.20 mm
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Pitch
76.18 mm
Classifications Shipping Weight
0.878357475 Kilogram
