14.30mm UM12 Grade Carbide Hole Rod

Name: 14.30mm UM12 Grade Carbide Hole Rod
Brand: Ultra-Met
SKU: SOL-93d6af
Price: 79.99 USD
Availability: OutOfStock

SKU:SOL-93d6af

High-quality 14.30mm UM12 Grade Carbide Rod for precision machining with exceptional durability and coolant channels.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

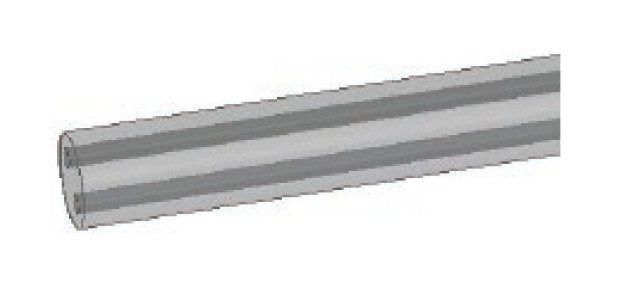

The 14.30mm UM12 Grade Carbide Hole Rod is a high-quality unground carbide rod designed for precision machining applications. With a diameter tolerance of +0.3mm | 0.5mm and a length of 330mm, this rod offers exceptional durability and reliability. The 1.50mm hole diameter and two straight coolant channels ensure efficient cooling during operations. Manufactured with UM12 carbide grade, this rod guarantees superior performance and longevity. Ideal for industrial use, this rod is engineered to meet stringent quality standards for consistent and accurate results.

Product Specifications

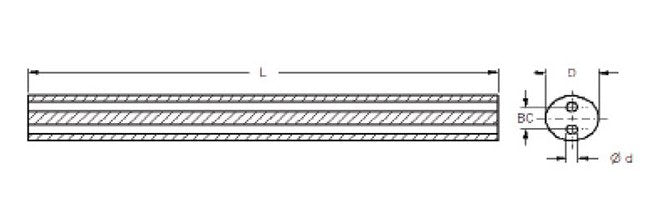

Classifications Between Centers Bc Diameter

5.0 mm

Classifications Between Centers Bc Diameter Tolerance

0/-0.30 mm

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM12

Classifications Diameter

14.30 mm

Classifications Diameter Tolerance

+0.3 mm | 0.5 mm

Classifications Finish

Unground

Classifications Hole D

1.50 mm

Classifications Hole D Tolerance

0.15 mm

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Shipping Weight

0.799318989 Kilogram
