14.30mm UM6 Grade 3-Hole 30° Carbide Rod

Name: 14.30mm UM6 Grade 3-Hole 30° Carbide Rod
Brand: Ultra-Met
SKU: SOL-18b44b
Price: 129.99 USD
Availability: OutOfStock

SKU:SOL-18b44b

High-grade 14.30mm carbide rod for precision machining. Exceptional durability and wear resistance for industrial applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

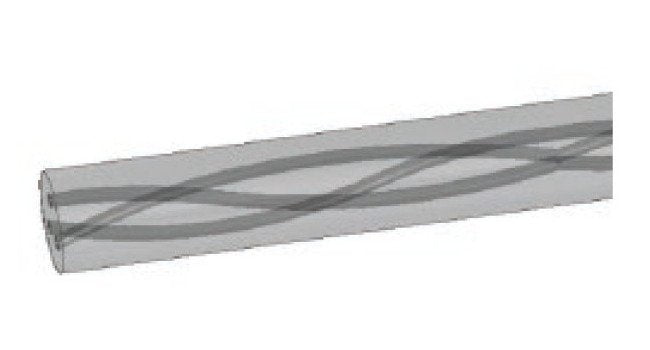

The 14.30mm UM6 Grade Three Hole 30 Degree Carbide Rod is a high-quality unground carbide rod designed for precision machining applications. With a diameter of 14.30mm and a length of 330mm (+5mm tolerance), this rod boasts exceptional durability and wear resistance. The 30-degree helix angle ensures efficient chip evacuation, while the UM6 carbide grade guarantees superior hardness and toughness. Perfect for industrial use, this carbide rod delivers consistent performance and longevity in demanding machining environments.

Product Specifications

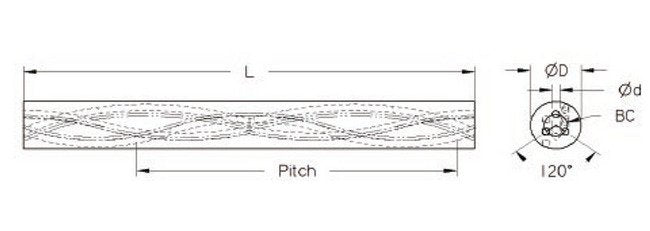

Classifications Between Centers Bc Diameter

7.05 mm

Classifications Between Centers Bc Diameter Tolerance

Â±0.40 mm

Classifications Brands

Ultra-MetÂ®

Classifications Carbide Grade

UM6

Classifications Diameter

14.30 mm

Classifications Finish

Unground

Classifications Hole D

1.40 mm

Classifications Hole D Tolerance

0.20 mm

Classifications Length

330 mm

Classifications Length Tolerance

+5 mm | 0 mm

Classifications Material

Carbide

Classifications Note

All inventory subject to prior sales.

Classifications Pitch

76.18 mm

Classifications Shipping Weight

0.878357475 Kilogram
