14.5mm F-Series Flat Head Rivet Nut

Name: 14.5mm F-Series Flat Head Rivet Nut
Brand: Ornit USA
SKU: FSE-35b0cd
Price: 15.99 USD
Availability: OutOfStock

SKU:FSE-35b0cd

High-quality 14.5mm flat head rivet nut for secure fastening applications. Steel with yellow zinc plated finish. Stainless steel & aluminum options available.

$15.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

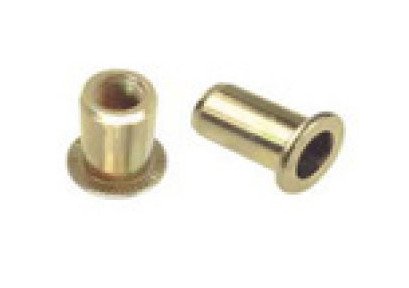

The F-Series 14.5mm Dimension L Open End Cylindrical Head Rivet Nut from Ornit is designed for sturdy and reliable fastening applications. Made of durable steel with a yellow zinc plated finish, this rivet nut features a cylindrical head (flat) design for a secure grip. With a grip range of 1.0mm to 2.5mm and dimensions meeting industry standards, this rivet nut ensures optimal performance. Available in stainless steel and aluminum options as well.

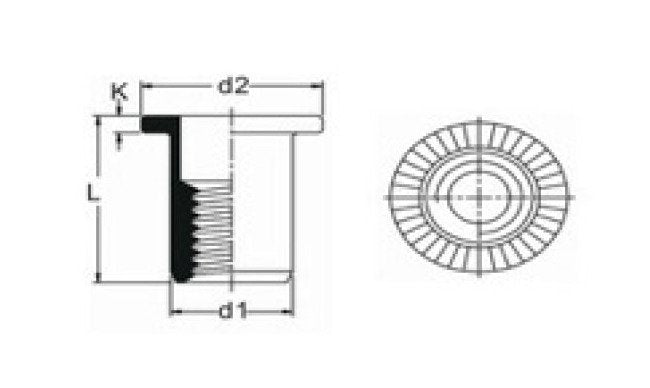

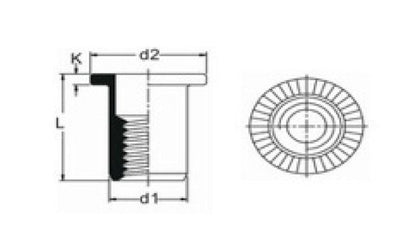

Product Specifications

Dimensions Dimension D1

8.9 mm

Dimensions Dimension D2

12.0 mm

Dimensions Dimension K

1.5 mm

Dimensions Dimension L

14.5 mm

Dimensions Hole Size

9.0 mm

Dimensions Maximum Grip Range

2.5 mm

Dimensions Minimum Grip Range

1.0 mm

Note Note

Stainless Steel & Aluminum are available. Square style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Cylindrical Head (Flat)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

14.5mm F-Series Flat Head Rivet Nut
