14 Inch Fabricated Tee Type Strainer
14 Inch Fabricated Tee Type Strainer
SKU:TEM-ce60ff
Custom fabricated 14-inch strainer for pipeline protection. Compliant with ISO 9001:2008 standards.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
14 Inch Fabricated Tee Type Strainer
$799.99
Quantity: 1
Claim Your Seller Account
14 Inch Fabricated Tee Type Strainer
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

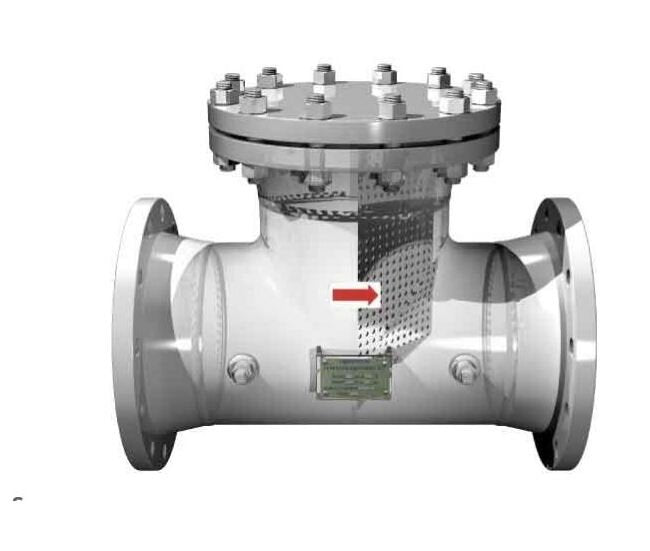

The 14 Inch Fabricated Tee Type Strainer by Sure Flow is a custom-designed compact strainer crafted for the removal of pipeline particles, ensuring maximum protection for pumps, valves, and equipment. Constructed from carbon or stainless steel with optional materials available, this strainer can be tailored to specific requirements. Compliant with ISO 9001:2008 standards, it offers customizable features such as straight flow, angled flow, and more.
Product Specifications
Additional Information Additional Information

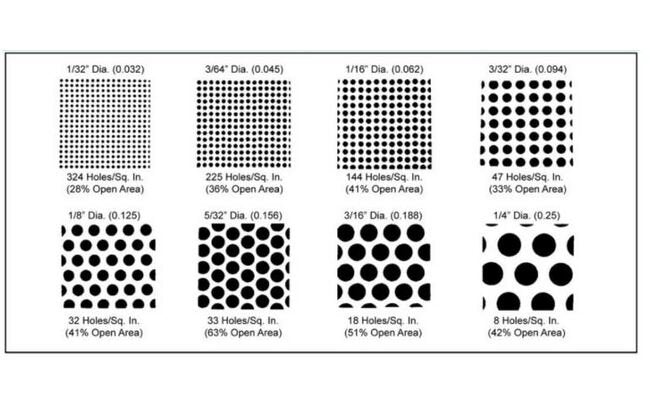

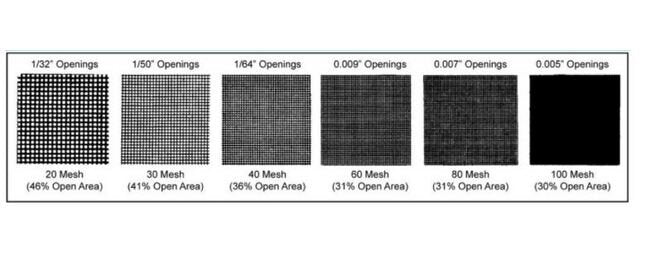

When ordering specify:Type - Straight Flow, Angled Flow, Angled ModifiedNominal Pipe SizeFlange Rating and FacingPressure Rating and FacingCorrosion Conditions, if any (type of materialPerforation (particle retention)

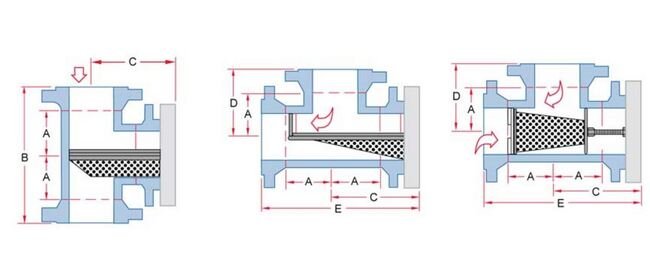

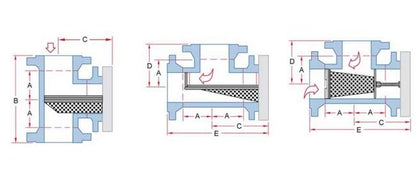

Dimensions Dimension A
11 in
Dimensions Dimension B For American Society Of Mechanical Engine
46 in
Dimensions Dimension C For American Society Of Mechanical Engine
28 5/8 in
Dimensions Dimension D For American Society Of Mechanical Engine
23 in
Dimensions Dimension E For American Society Of Mechanical Engine
51 5/8 in
Dimensions Pipe Size
14 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges and bodies are designed to meet Section 1 of American Standard Code for Pressure Piping, ASA B31.1.Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
