14 Inch (in) Inlet (I) Full Sized Exhaust Silencer

Name: 14 Inch (in) Inlet (I) Full Sized Exhaust Silencer
Brand: Penn Separator Corp.
SKU: EXH-5d2da0
Price: 49.99 USD
Availability: OutOfStock

SKU:EXH-5d2da0

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Muffler to Quite Noise From High Velocity Steam and Air Atmospheric Venting.When steam, air, and other gases are vented to atmosphere at high velocities noise is created. Typically the higher the velocity the louder the noise level. Penn makes two models of Exhaust Silencers to reduce noise levels. Our "SP" full sized unit provides maximum noise reductions of 34-46 dB(A).

Product Specifications

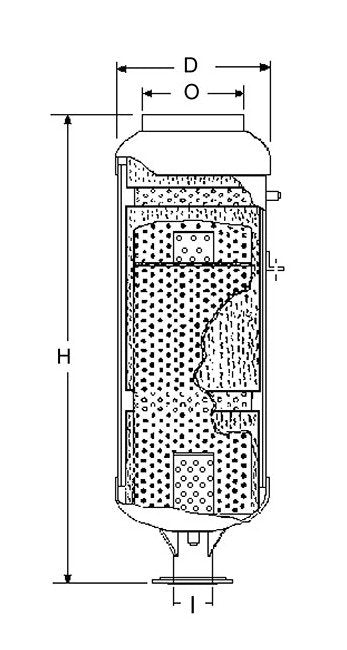

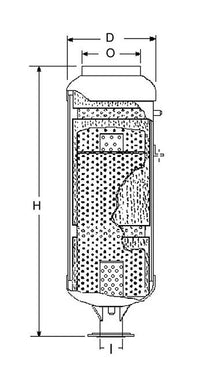

Sizing And Dimensions Diameter D

48 in

Sizing And Dimensions Flange Weight

4,505 lb

Sizing And Dimensions Height H

252 in

Sizing And Dimensions Inlet I

14 in

Sizing And Dimensions Maximum Air Pressure

60,100 scfm

Sizing And Dimensions Maximum Steam

125,000 lb/hr

Sizing And Dimensions Outlet O

30 in

Sizing And Dimensions Reduction Air

45.1

14 Inch (in) Inlet (I) Full Sized Exhaust Silencer
