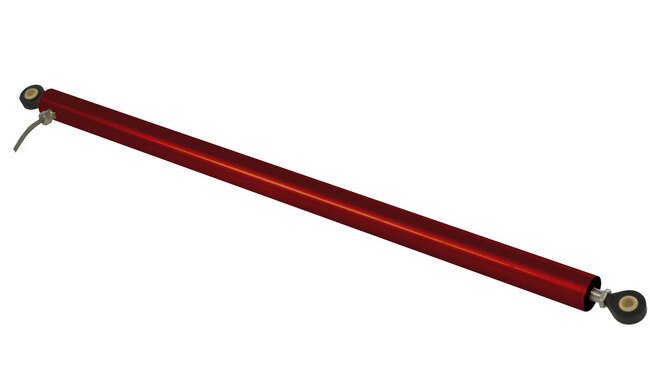

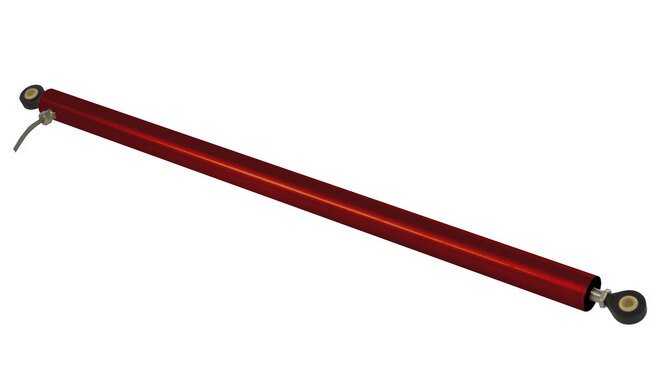

14 Inch Stroke 27mm Linear Potentiometer Sensor

Name: 14 Inch Stroke 27mm Linear Potentiometer Sensor
Brand: Alliance Sensors Group
SKU: LIN-e7e562
Price: 129.99 USD
Availability: OutOfStock

SKU:LIN-e7e562

Enhance precision with our 14-inch stroke Linear Potentiometer Sensor featuring 0-10V DC output and CE approval.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your linear potentiometer units with the Alliance Sensors Group 27mm sensor. With a generous 14-inch stroke and precise 0 to 10V DC output, this sensor guarantees accurate readings in a temperature range from -40 to 105ºC. The <0.25% linearity and 0.025% resolution, combined with European Conformity (CE) approval, ensure unmatched performance and compliance. Ideal for institutional settings requiring high precision and reliability.

Product Specifications

Technical Specs Brands

Alliance Sensors Group

Technical Specs Cable Type

Radial

Technical Specs European Conformity Ce Approved

Yes

Technical Specs Linearity

<0.25 % of Full Scale

Technical Specs Material

Aluminum Body

Technical Specs Output Direct Current Dc Voltage

0 to 10 V

Technical Specs Outside Diameter

27 mm

Technical Specs Range

14 in

Technical Specs Resolution

0.025 % of Full Scale

Technical Specs Stroke

14 in

Technical Specs Temperature Range

-40 to 105 ºC

Technical Specs Termination

1 m Cable

Technical Specs Type

Rod Ends

Technical Specs Update Rate

300 Hz
