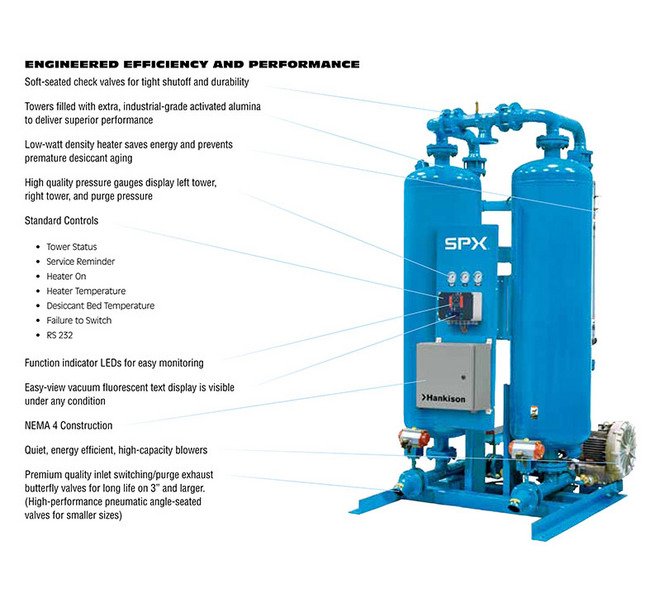

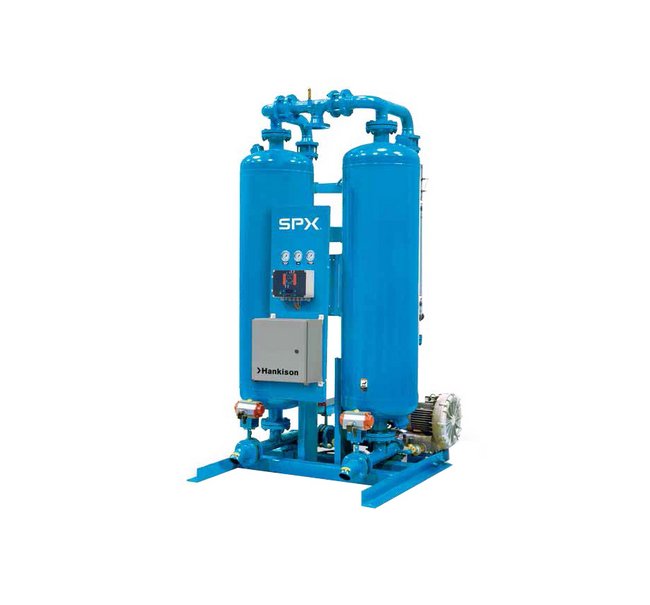

The 14 kW Heat Rated Output Desiccant Compressed Air Dryer from the HBP Series by Hankison® ensures 100% efficient air systems, meeting ISO 8573.1 Quality Classes for superior air quality. With features like soft-seated check valves, industrial-grade activated alumina, and low-watt density heater, this dryer delivers exceptional performance, energy savings, and durability. Engineered for reliability and ease of monitoring, it guarantees optimal dew point performance and reduced energy consumption, making it an ideal choice for demanding industrial applications.
Product Specifications
Additional Information

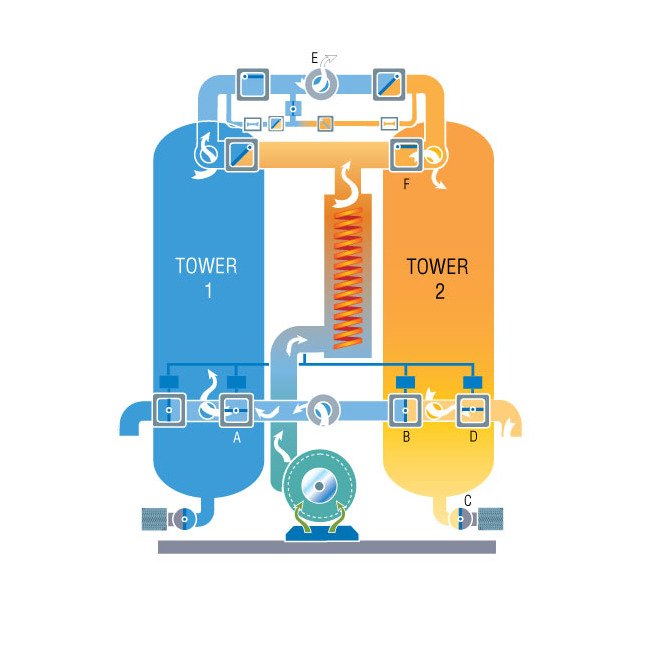

HBP Series dryers improve air system efficiency by the use of a dedicated axial blower, instead of a percentage of dehydrated purge air, to regenerate the off-line desiccant tower. ISO 8573.1 Class 2 (-40 ºF/-40 ºC) dew point performance is guaranteed.
Demand Side Impact On Supply Side Dryer Types Air Compressor Nee
250 hp | 1250 scfm
Demand Side Impact On Supply Side Dryer Types Air Volume Require
1176 scfm
Demand Side Impact On Supply Side Dryer Types Compressed Purge A
24506 USD
Demand Side Impact On Supply Side Dryer Types Dryer Types
HBP Series Blower Purge | Heated Purge | Heatless

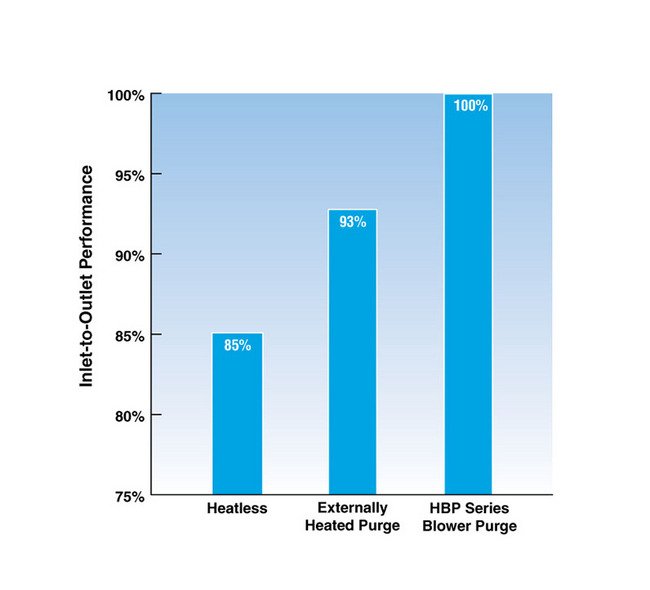

Demand Side Impact On Supply Side Dryer Types Efficiency For Hbp
100 %
Demand Side Impact On Supply Side Dryer Types Efficiency For Hea
85 %
Engineering Data Depth
83 in
Engineering Data Height
114 in
Engineering Data Width
60 in
Iso 85731 Quality Classes Maximum Number Of Solid Particles For
20000 m³
Iso 85731 Quality Classes Maximum Number Of Solid Particles Per
1
Product Features For Option A Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Option B Model Of Controller Power Recovery
Automatic Restart after Power Loss
Product Features For Standard Model Of Controller Power Recovery
Automatic Restart after Power Loss
Specifications Inlet Connection Size
3 in
Specifications Outlet Connection Size
3 in
