14 Series Circuit Board Support - Nylon UL94V-2, .156" Board Hole, 8-32 Thd.

Name: 14 Series Circuit Board Support - Nylon UL94V-2, .156" Board Hole, 8-32 Thd.
Brand: All Electronics Hardware
SKU: 01C-268300
Price: 12.99 USD
Availability: OutOfStock

SKU:01C-268300

Secure circuit boards with ease using our durable and heat-resistant 14 Series Circuit Board Support.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 14 Series Circuit Board Support with .156" Board Hole and 8-32 Thread is a reliable solution for securing circuit boards in place. Made from Nylon 66 UL94V-2 material, this support is durable and heat-resistant. It attaches securely with an 8-32 hex nut (AEH Pt# 12-00-832) on the chassis end. With ASTM D 4066 and PA111 certifications, this product meets industry standards for quality and performance. RoHS compliant and available in UL94V-0 upon request, it ensures environmental responsibility. Suitable for a temperature range of -40 to 185F, this circuit board support offers versatility and reliability.

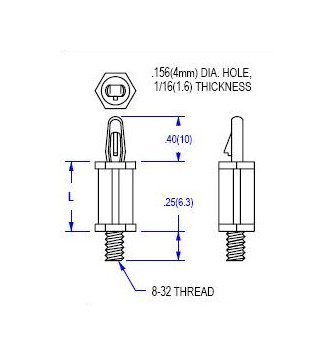

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Dim L

.750 (19.1) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

14 Series Circuit Board Support - Nylon UL94V-2, .156" Board Hole, 8-32 Thd.
