14 Series Circuit Board Support with .156 Board Hole and 8-32 Thread, Chassis Side

Name: 14 Series Circuit Board Support with .156 Board Hole and 8-32 Thread, Chassis Side
Brand: All Electronics Hardware
SKU: 01C-89ded7
Price: 22.99 USD
Availability: OutOfStock

SKU:01C-89ded7

Durable 14 Series circuit board support for enhanced stability and compliance with ASTM standards. RoHS compliant.

$22.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

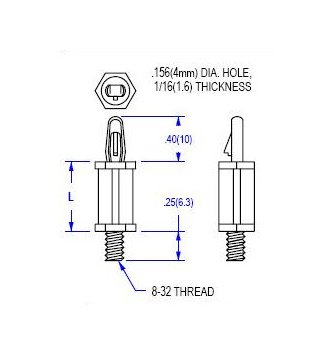

Enhance circuit board stability with the 14 Series Circuit Board Support. Made of durable Nylon 66 UL94V-2 material (UL94V-0 available), this threaded support securely fastens at the chassis side with an 8-32 hex nut. It meets ASTM D 4066 and PA111 standards, offering a board hole diameter of .156 inches and a panel thickness of .063 inches. RoHS compliant and with a temperature range of -40 to 185F (-40 to 85C), this support is a reliable choice for various applications.

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Dim L

1.125 (28.6) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

14 Series Circuit Board Support with .156 Board Hole and 8-32 Thread, Chassis Side
