14 Series Circuit Board Supports - .156 Board Hole x 8-32 Thd.

Name: 14 Series Circuit Board Supports - .156 Board Hole x 8-32 Thd.
Brand: All Electronics Hardware
SKU: 01C-9387f4
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-9387f4

Durable 14 Series Circuit Board Supports for secure chassis end fastening. UL94V-2 material, RoHS compliant. Ideal for electronics assemblies.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your electronic assemblies with the 14 Series Circuit Board Supports. These threaded supports feature a chassis side that securely fastens with an 8-32 hex nut (AEH Pt# 12-00-832). Each support is constructed from durable Nylon 66 UL94V-2 material, with UL94V-0 option available upon request. Compliant with ASTM D 4066 and PA111 standards, these supports have a temperature range of -40 to 185F (-40 to 85C), ensuring reliability in various environments.

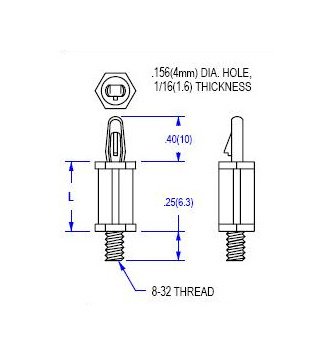

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Dim L

.875 (22.3) inches (mm)

Specifications Material Code

UL94V-2

Specifications Panel Thickness

.063 (1.6) inches (mm)

14 Series Circuit Board Supports - .156 Board Hole x 8-32 Thd.
