14" Vertical Flow Chevron Mist Eliminator
14" Vertical Flow Chevron Mist Eliminator
SKU:VER-38dab3
Enhance mist elimination with the 14" Vertical Flow Chevron Mist Eliminator, crafted for durability and peak performance in institutional settings.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
14" Vertical Flow Chevron Mist Eliminator
$1,299.99
Quantity: 1
Claim Your Seller Account
14" Vertical Flow Chevron Mist Eliminator
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

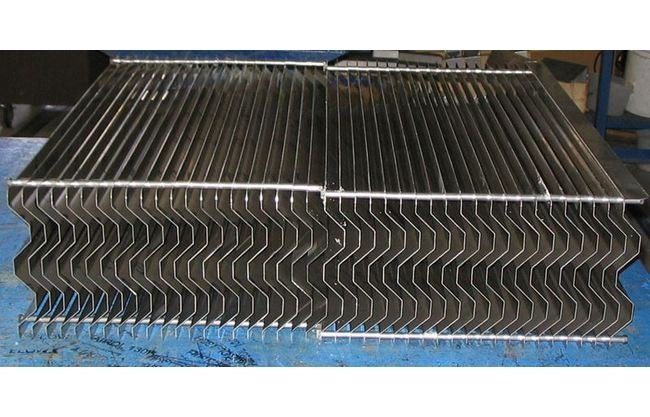

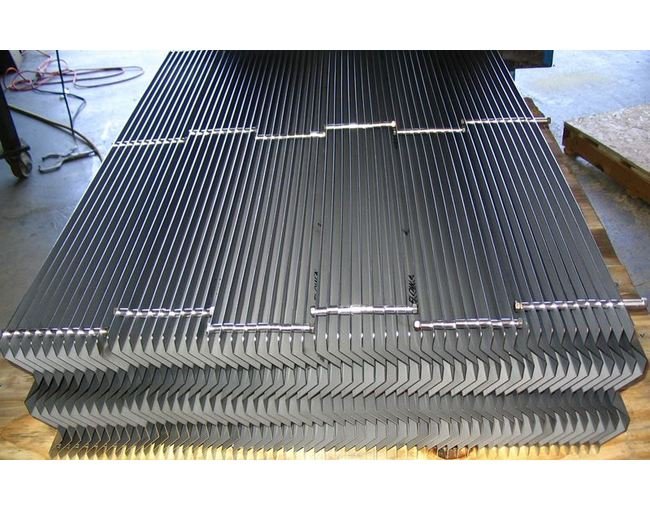

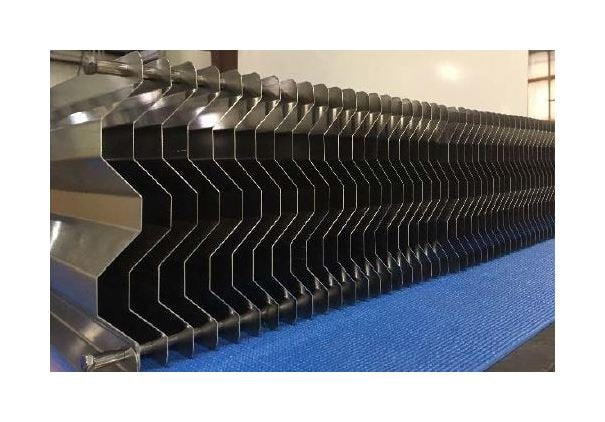

The 14" Vertical Flow Chevron Mist Eliminator offers superior mist elimination efficiency with its AIROL® 140H Chevron design. Constructed with T304(L), T316(L), and other high-quality alloys, it ensures durability and optimal performance. Designed with a vane profile height of 14", profile depth of 2 1/4", and vane spacing ranging from 1 to 1 3/4", this mist eliminator is tailored to meet stringent institutional procurement standards. Ideal for existing or planned beam spacing, it delivers exceptional mist removal capabilities while maintaining peak efficiency.
Product Specifications
Technical Specifications Item Name
AIROL® 140H Chevron Mist Eliminator
Technical Specifications Materials Of Construction
T304(L), T316(L), and most other alloys.
Technical Specifications Module Size
Designed to suit existing or planned beam spacing.

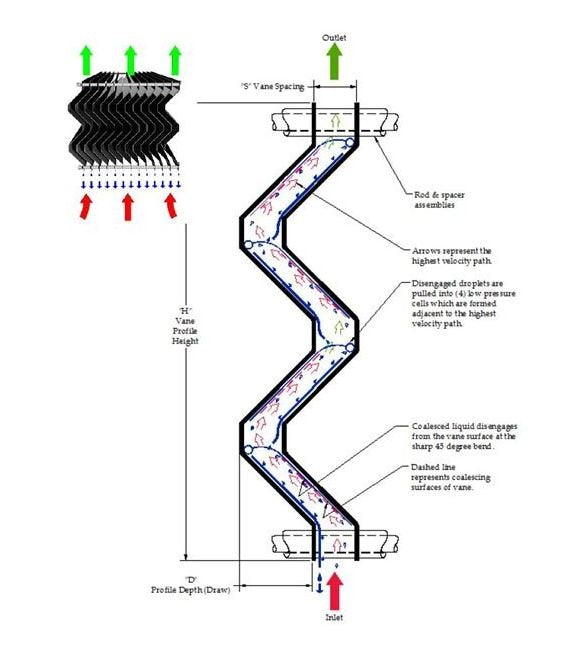

Technical Specifications Profile Depth Draw D
2 1/4 "
Technical Specifications Vane Material Thickness
20 gauge standard duty.
Technical Specifications Vane Profile Height H
14 "
Technical Specifications Vane Spacing S
1 to 1 3/4 "
