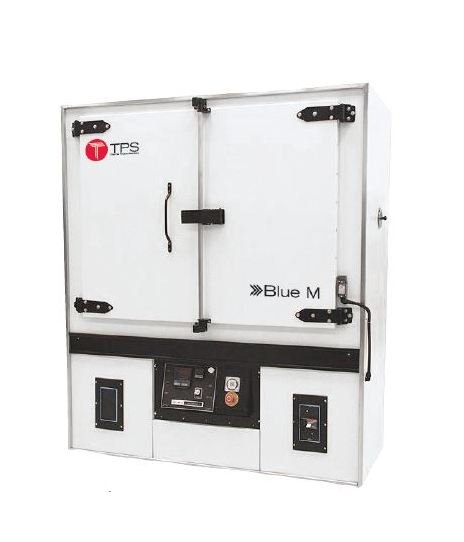

The Blue M Inert Gas Mechanical Convection Oven, which we pressure-test at normal operating levels, is ideal for industrial oven applications that involve processing materials in a controlled atmosphere environment, as well as dry packaging of electronic components.
Product Specifications
Specifications Ac Voltage At 1 Phase
208 V | 240 V
Specifications Ac Voltage At 3 Phase
208 V | 240 V | 480 V
Specifications Ambient Temperature
316 ºC | 600 ºF
Specifications Engineered Oven Options
All stainless steel exterior construction | Lead-in pipes | Rear access door(s) | Redundant over-temperature protection | Space-saving stack oven design | Special control systems
Specifications Exterior Depth
24 in | 40 in | 1016 mm | 610 mm
Specifications Exterior Height
36 in | 82 in | 914 mm | 2083 mm
Specifications Exterior Width
48 in | 68 in | 1219 mm | 1727 mm
Specifications Frequency
60 Hz
Specifications General Specifications
Temperature range: 15°C above ambient to 316°C (600°F) | Uniformity: ± 1% of setpoint | Control Accuracy: +0.5°C | Resolution: ± 0.1°C | Performance data (typical): Run-up to 300°C 60 min. (or less)
Specifications Inert Gas Oven Options
24-hour, 7-day digital process timer | Casters | Circular chart recorder | Comm-Link RS-485 to RS-232 computer interface | Control and monitor software | Floorstands | Reverse door hinge | Stainless steel slotted shelves
Specifications Interior Depth
24 in | 610 mm
Specifications Interior Height
36 in | 914 mm
Specifications Interior Volume
24 ft³
Specifications Interior Width
48 in | 1219 mm
Specifications Line Current At 208 Volts V 1 Phase
38 A
Specifications Line Current At 208 Volts V 3 Phase
53 A
Specifications Line Current At 240 Volts V 1 Phase
44 A
Specifications Line Current At 240 Volts V 3 Phase
61 A
Specifications Line Current At 480 Volts V 3 Phase
31 A
Specifications Machine Footprint
19 ft²
Specifications Oven Type
Floor Model
Specifications Rated Power At 208 Volts V 1 Phase
6.8 kW
Specifications Rated Power At 208 Volts V 3 Phase
18 kW
Specifications Rated Power At 240 Volts V 1 Phase
9 kW
Specifications Rated Power At 240 Volts V 3 Phase
24 kW
Specifications Rated Power At 480 Volts V 3 Phase
24 kW
Specifications Temperature
15 ºC
