140pF Capacitive Humidity Sensor with Gold/Copper Wires
140pF Capacitive Humidity Sensor with Gold/Copper Wires
SKU:HUM-4af391
High-quality 140pF Capacitance Humidity Sensor for meteorology applications. Fast response time and precise measurements.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
140pF Capacitive Humidity Sensor with Gold/Copper Wires
$49.99
Quantity: 1
Claim Your Seller Account
140pF Capacitive Humidity Sensor with Gold/Copper Wires
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

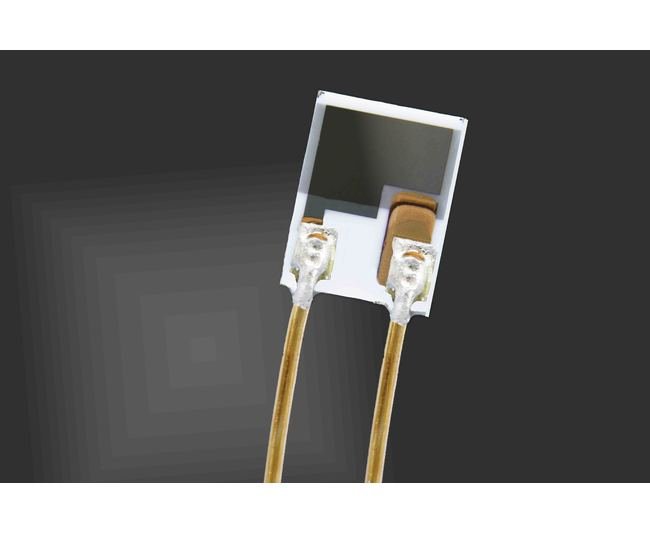

The 140 Picofarads (pF) Capacitance Humidity Sensor is a high-quality, rapid-response sensor designed for precise humidity measurements in meteorology applications. Manufactured by Innovative Sensor Technology, USA Division, this sensor ensures stability and robustness in various environments. With an operating relative humidity range of 0 to 100% and an operating temperature range of -80 to +150°C, it excels in applications such as weather balloons and radiosondes. The sensor's capacitance of 140 pF with a tolerance of ± 40 pF at +23°C and 30% RH guarantees accurate and consistent readings. Its gold/copper wires, measuring 0.4 mm in diameter and 10 mm in length, ensure reliable connectivity.
Product Specifications
Dimensions Height
0.4 mm
Dimensions Length
5.0 mm
Dimensions Width
3.81 mm
Specifications Capacitance
140 pF
Specifications Capacitance Tolerance At 23 Degree Celsius C Temp
40 pF
Specifications Manufacturer Part Number
P14 Rapid-W (140 ± 40pF)
Specifications Old Product Code
040.00177
Specifications Operating Relative Humidity Rh Range
0 to 100 %
Specifications Operating Temperature Range
-80 to +150 ºC
Specifications Wire Diameter
0.4 mm
Specifications Wire Length
10 mm
Specifications Wire Type
Gold (Au)/Copper (Cu)
