141 Inch (in) Casing Side Advanced Acoustical Cone for New Philadelphia (Formerly Joy) Axivane Fan

Name: 141 Inch (in) Casing Side Advanced Acoustical Cone for New Philadelphia (Formerly Joy) Axivane Fan
Brand: ArtUSA Noise Control Products
SKU: SIL-9ed6c0
Price: 49.99 USD
Availability: OutOfStock

SKU:SIL-9ed6c0

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

Dynamic Insertion Loss Dynamic Insertion Loss 1000 Hertz Hz 1500

31 dB

Dynamic Insertion Loss Dynamic Insertion Loss 125 Hertz Hz 1500

18 dB

Dynamic Insertion Loss Dynamic Insertion Loss 2000 Hertz Hz 1500

28 dB

Dynamic Insertion Loss Dynamic Insertion Loss 250 Hertz Hz 1500

18 dB

Dynamic Insertion Loss Dynamic Insertion Loss 4000 Hertz Hz 1500

20 dB

Dynamic Insertion Loss Dynamic Insertion Loss 500 Hertz Hz 1500

31 dB

Dynamic Insertion Loss Dynamic Insertion Loss 63 Hertz Hz 1500 F

9 dB

Dynamic Insertion Loss Dynamic Insertion Loss 8000 Hertz Hz 1500

20 dB

Note

For each 1500 FPM over 1500, add 1 dB per band.

Specifications Casing Side

141 in

Specifications Inlet Diameter

134 in

Specifications Length

127 in

Specifications Maximum Air Flow

127000 ft³/min

Specifications Outlet Diameter

66.00 in

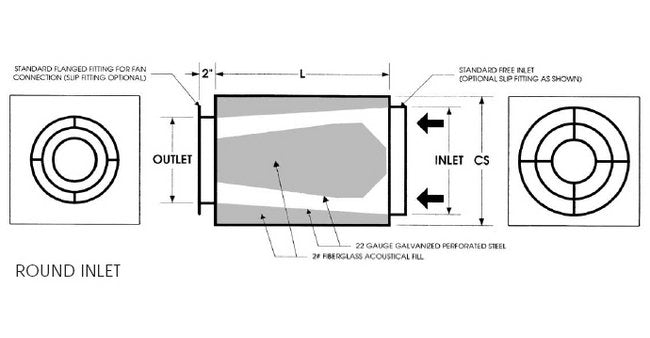

Specifications Shape Of Inletoutlet

Round Inlet

Specifications Silencer Size Class

Specifications Type

Acoustical

Specifications Use For

New Philadelphia (Formerly Joy) Axivane Fans
