143-0 Series 4.315 Inch Mechanical Test Plug for Cleanouts
143-0 Series 4.315 Inch Mechanical Test Plug for Cleanouts
SKU:HIG-6d4420
Seal damaged cleanouts efficiently with the 143-0 Series Hand Tightening Nylon Test Plug for 4.315" pipes. Ideal for industrial use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
143-0 Series 4.315 Inch Mechanical Test Plug for Cleanouts
$29.99
Quantity: 1
Claim Your Seller Account
143-0 Series 4.315 Inch Mechanical Test Plug for Cleanouts
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 143-0 Series Hand Tightening Nylon Test Plug is designed for maximum pipe diameter of 4.315 inches, providing an airtight seal for damaged cleanout openings or deteriorated threads. Featuring a soft PVC gasket for secure sealing, this plug is suitable for 1-1/2 to 4-inch female cleanout threads. Made by Petersen®, this plug is durable and reliable for industrial applications.

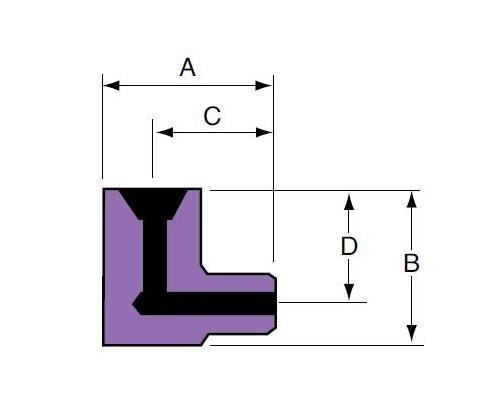

Product Specifications
Specifications A Length
4.12 in | 104.65 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Height
2.50 in | 63.50 mm
Specifications Connection Type
1" NPT
Specifications C Length
2.69 in | 68.32 mm
Specifications D Height
1.75 in | 44.45 mm
Specifications Minimum Opening
0.765 in | 19.43 mm
Specifications Pressure Rating
10.000 psi | 689.46 bar
