143-0 Series Mechanical Test Plug for 3.135 Inch Pipe Diameter
143-0 Series Mechanical Test Plug for 3.135 Inch Pipe Diameter
SKU:HIG-066c1b
Efficiently test pipes up to 3.135 inches with the 143-0 Series Mechanical Test Plug.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
143-0 Series Mechanical Test Plug for 3.135 Inch Pipe Diameter
$29.99
Quantity: 1
Claim Your Seller Account
143-0 Series Mechanical Test Plug for 3.135 Inch Pipe Diameter
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 143-0 Series Mechanical Test Plug is a reliable solution for pneumatic testing of pipes with a maximum diameter of 3.135 inches. Featuring a hollow, bored bolt stem and threaded brass air filler valve, this plug offers a convenient alternative to traditional water pressure tests. With a non-slip shoulder to prevent gasket spinning, it ensures a secure seal for efficient testing procedures in both commercial and industrial settings.
Product Specifications

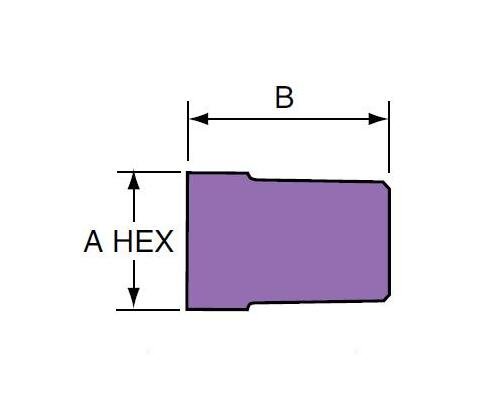

Specifications A Hex
1.19 in | 30 mm
Specifications B Length
1.63 in | 41 mm
Specifications Connection Type
3/4" NPT
Specifications Pressure Rating
10.000 psi | 689.46 bar
