143-9 ABS Wing Nut Pipe Plug, 1.5 Inch
143-9 ABS Wing Nut Pipe Plug, 1.5 Inch
SKU:HIG-7d38c0
High-quality 1.5” ABS Wing Nut Pipe Plug for secure DWV testing and stack applications.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
143-9 ABS Wing Nut Pipe Plug, 1.5 Inch
$19.99
Quantity: 1
Claim Your Seller Account
143-9 ABS Wing Nut Pipe Plug, 1.5 Inch
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 143-9 Series ABS Wing Nut Pipe Plug is a reliable solution for DWV and stack testing applications. Made with glass-reinforced ABS plastic, it features an end-of-pipe design that seals securely without falling in. The inside-of-pipe design allows flexible placement. Equipped with an extra-large zinc wing nut for easy installation, it meets high-pressure standards and ensures leak-free performance. Ideal for sewer testing and long-term use, this mechanical plug prioritizes safety and efficiency.

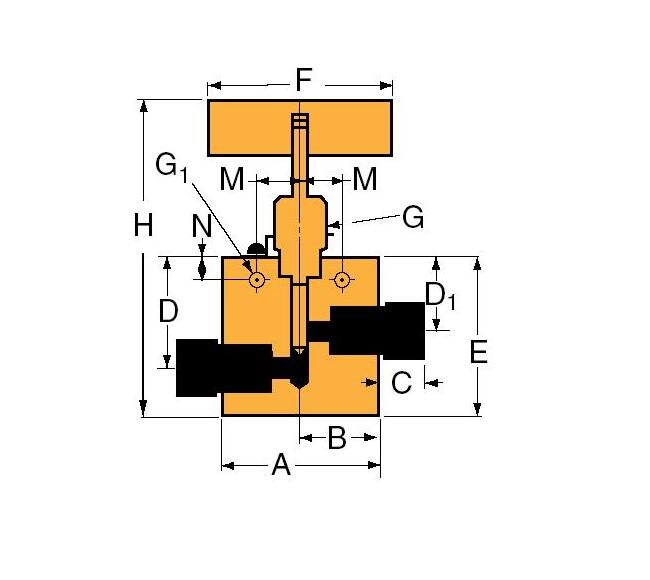

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F375C
Specifications C Length
0.53 in | 13.46 mm
Specifications D1 Height
1.12 in | 28.45 mm
Specifications D Height
1.5 in | 38.1 mm
Specifications E Height
2.00 in | 50.80 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
4.68 in | 118.87 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.23
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.69 in | 17.5 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
