144 Port Count 12 Module Capacity Xtreme12™ Patch Panel with Rear Cable Manager
144 Port Count 12 Module Capacity Xtreme12™ Patch Panel with Rear Cable Manager
SKU:XTR-fb1de9
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
144 Port Count 12 Module Capacity Xtreme12™ Patch Panel with Rear Cable Manager
$49.99
Quantity: 1
Claim Your Seller Account
144 Port Count 12 Module Capacity Xtreme12™ Patch Panel with Rear Cable Manager
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

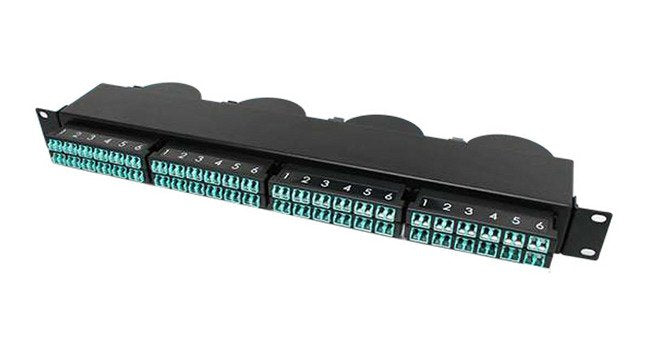

Xtreme12™ rack mount patch panels house up to 12 Xtreme12™ cassette modules for a total of 72 duplex ports in a 1 RU space. Xtreme12™ panels come in two designs, a slide out tray version and static panel version.The slide out version completely houses the incoming trunk cable, modules and outgoing patch cords. The slide out shelf provides for complete access to both front and rear compartments from the front of the rack or cabinet.The static version Xtreme12™ 1U panel is completely open for easy front and rear access. It is ideally suited for top of rack (TOR) applications. It can house up to 12 Xtreme12™ modules for up to 144 ports. It can be ordered stand alone or with optional rear trunk cable manager.
Product Specifications
Note
Made in the USA.
Ordering Information Module Capacity
12
Ordering Information Optional
Rear Cable Manager
Ordering Information Port Count
144
Ordering Information Rack Mount Unit
1
Ordering Information Version
Fixed Panel
