145-9 Mechanical High Pressure Test Plug, 4.125 Inch
145-9 Mechanical High Pressure Test Plug, 4.125 Inch
SKU:HIG-5bfe1c
Durable and high-pressure mechanical test plug for pipes up to 4.125 inches, with solid rubber seals and lightweight aluminum construction.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
145-9 Mechanical High Pressure Test Plug, 4.125 Inch
$189.99
Quantity: 1
Claim Your Seller Account
145-9 Mechanical High Pressure Test Plug, 4.125 Inch
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 145-9 Mechanical High Pressure Test Plug is crafted for precision with solid rubber seals, ensuring a secure fit for pipe sizes up to 4.125 inches. Engineered with lightweight aluminum, this plug offers easy installation, replaceable seals, and a positive seal against line pressure. Ideal for force and water main, lift stations, nuclear cooling lines, fire protection systems, and more.
Product Specifications

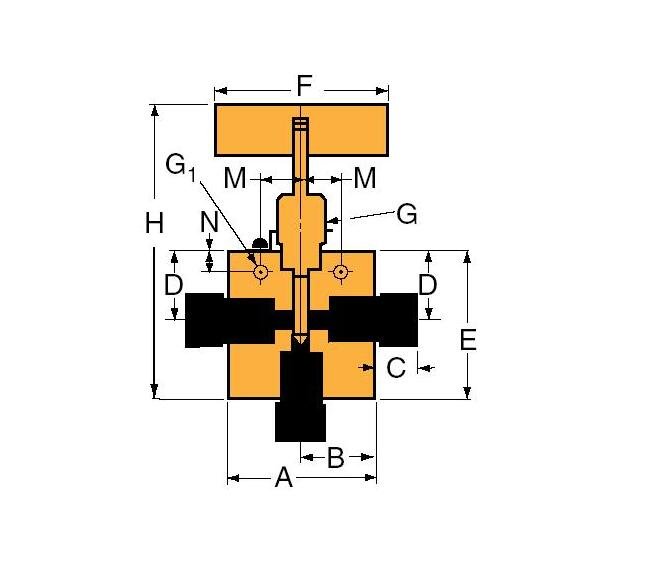

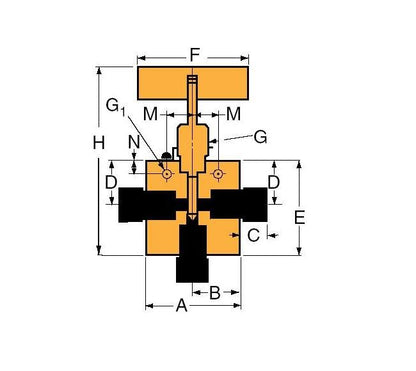

Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.72 in | 18.29 mm
Specifications D1 Height
1.31 in | 33.27 mm
Specifications D Height
1.31 in | 33.27 mm
Specifications E Height
2.81 in | 71.37 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.44 in | 138.18 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.078 in | 1.98 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
60000 psi | 4137 bar
Specifications Rated Cv
0.14
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
