145-9 Series 14.125 Inch Mechanical High Pressure Test Plug
145-9 Series 14.125 Inch Mechanical High Pressure Test Plug
SKU:HIG-497f54
Durable mechanical test plug with solid rubber seals, lightweight aluminum, and 100 psig maximum head pressure. Ideal for pipeline isolation during testing and construction.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
145-9 Series 14.125 Inch Mechanical High Pressure Test Plug
$299.99
Quantity: 1
Claim Your Seller Account
145-9 Series 14.125 Inch Mechanical High Pressure Test Plug
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 145-9 Series 14.125 Inch Mechanical High Pressure Test Plug is a durable solution for isolating pipelines during testing and construction. Featuring solid rubber seals, lightweight aluminum construction, and a maximum head pressure of 100 psig, this plug ensures a positive seal against line pressure. Suitable for various applications including force and water mains, lift stations, and fire protection lines, this plug offers reliability and ease of installation. Compliant with industry standards and offering replaceable seals, this plug is a valuable asset for institutional and government buyers.
Product Specifications

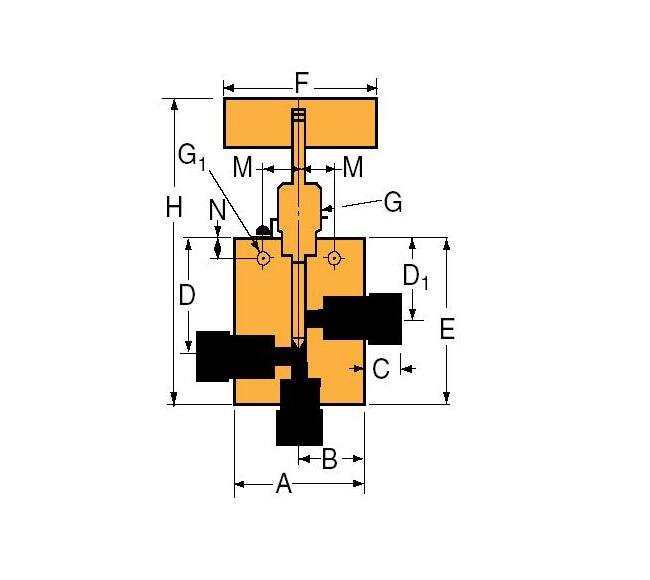

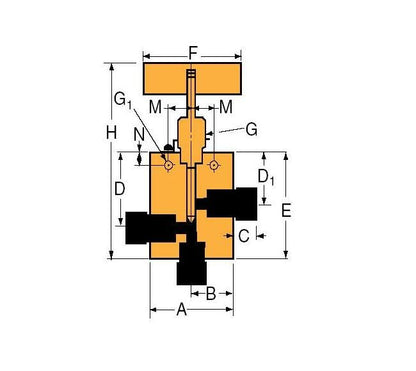

Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 35.05 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
F312C150
Specifications C Length
0.52 in | 13.21 mm
Specifications D1 Height
1.44 in | 36.58 mm
Specifications D Height
1.75 in | 44.45 mm
Specifications E Height
3.25 in | 82.55 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.12 in | 28.45 mm
Specifications H Height
6.31 in | 160.27 mm
Specifications M Length
1.12 in | 28.45 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
100000 psi | 6895 bar
Specifications Rated Cv
0.09
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.18 in | 30.0 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R100VM15071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard AE valves with Teflon packing may be operated to 450°F(232°C), and to 230°F (110°C) with nylon-leather packing.K - anti-vibration collet and gland assembly. For other packing options consult the factory.
