145-9 Series High Pressure Mechanical Test Plug - 33.875 inch
145-9 Series High Pressure Mechanical Test Plug - 33.875 inch
SKU:HIG-d01216
High pressure mechanical test plug for industrial projects, with durable seals and lightweight design.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
145-9 Series High Pressure Mechanical Test Plug - 33.875 inch
$899.99
Quantity: 1
Claim Your Seller Account
145-9 Series High Pressure Mechanical Test Plug - 33.875 inch
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 145-9 Series Mechanical High Pressure Test Plug, with solid rubber or inflatable seals, offers easy installation, replaceable seals, and a lightweight aluminum build. Designed to hold against line pressures up to 100 psig, this plug is ideal for force mains, water main testing, nuclear cooling lines, fire protection systems, and more. With customizable pressure options, these plugs ensure efficient isolation for testing and construction needs.

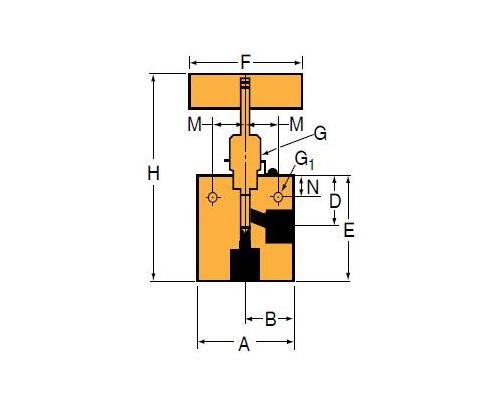

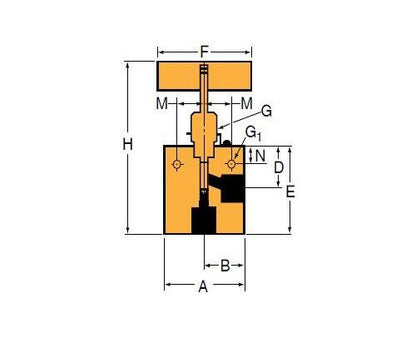

Product Specifications
Specifications A Width
1.5 in | 38.10 mm
Specifications Block Thickness
0.63 in | 15.88 mm
Specifications B Length
0.75 in | 19.05 mm
Specifications Connection Type
Pipe
Specifications D Height
0.56 in | 14.22 mm
Specifications E Height
1.38 in | 34.93 mm
Specifications F Length
1.75 in | 44.45 mm
Specifications G1 Bracket Mounting Hole Size
0.16 in | 4.06 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.56 in | 14.22 mm
Specifications H Height
2.66 in | 67.56 mm
Specifications M Length
0.45 in | 11.43 mm
Specifications N Height
0.20 in | 5.16 mm
Specifications Orifice Diameter
0.078 in | 1.98 mm
Specifications Pipe Size
1/8 in | 3.18 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.11
Specifications Stem Type
VEE
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).â Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
