145-9 Series Mechanical High Pressure Test Plug
145-9 Series Mechanical High Pressure Test Plug
SKU:HIG-72a131
Versatile and reliable 145-9 Series Mechanical High Pressure Test Plug by Petersen® for diverse applications, ensuring positive sealing under maximum pressure.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
145-9 Series Mechanical High Pressure Test Plug
$89.99
Quantity: 1
Claim Your Seller Account
145-9 Series Mechanical High Pressure Test Plug
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 145-9 Series Mechanical High Pressure Test Plug by Petersen® is a versatile solution designed for reliable isolation in various applications. With options for solid rubber or inflatable seals, this lightweight aluminum plug ensures easy installation and seamless seal replacement. Capable of withstanding a maximum head pressure of 200 psig, this plug features a by-pass port in National Pipe Thread (NPT) for added flexibility. Ideal for force and water main projects, lift stations, nuclear cooling lines, and more, this plug guarantees positive sealing under line pressure, meeting stringent industry standards for testing and construction.

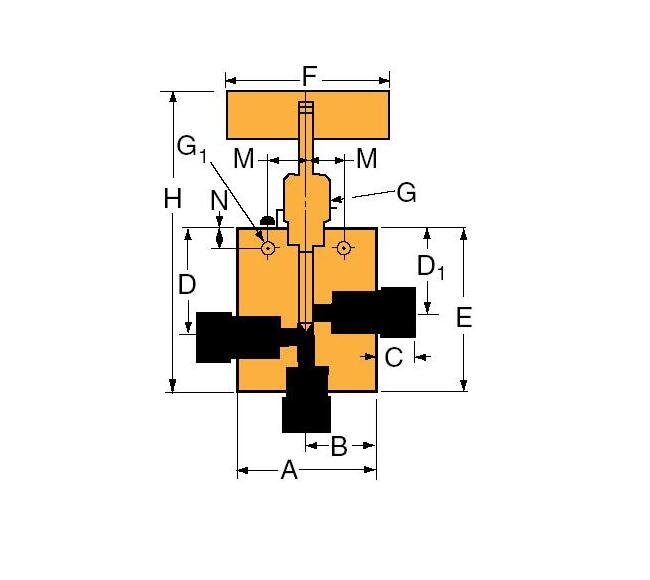

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.72 in | 18.29 mm
Specifications D1 Height
1.31 in | 33.27 mm
Specifications D Height
1.75 in | 45.45 mm
Specifications E Height
3.03 in | 76.96 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.13 in | 130.30 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.078 in | 1.98 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
60000 psi | 4137 bar
Specifications Rated Cv
0.14
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
