145-9 Series Mechanical High Pressure Test Plug, 13.375" (in) Max Pipe Size
145-9 Series Mechanical High Pressure Test Plug, 13.375" (in) Max Pipe Size
SKU:HIG-a9edf0
High pressure test plug for 13.375" pipes, with durable seals and lightweight aluminum design.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
145-9 Series Mechanical High Pressure Test Plug, 13.375" (in) Max Pipe Size
$289.99
Quantity: 1
Claim Your Seller Account
145-9 Series Mechanical High Pressure Test Plug, 13.375" (in) Max Pipe Size
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 145-9 Series Mechanical High Pressure Test Plug is a reliable solution designed for maximum pipe sizes up to 13.375 inches, offering options for solid rubber or inflatable seals. With its lightweight aluminum construction, easy installation, and replaceable seals, this plug ensures a positive seal against line pressure. Suitable for a range of applications including force and water mains, lift stations, and fire protection lines, this plug is versatile and efficient for testing and construction needs.

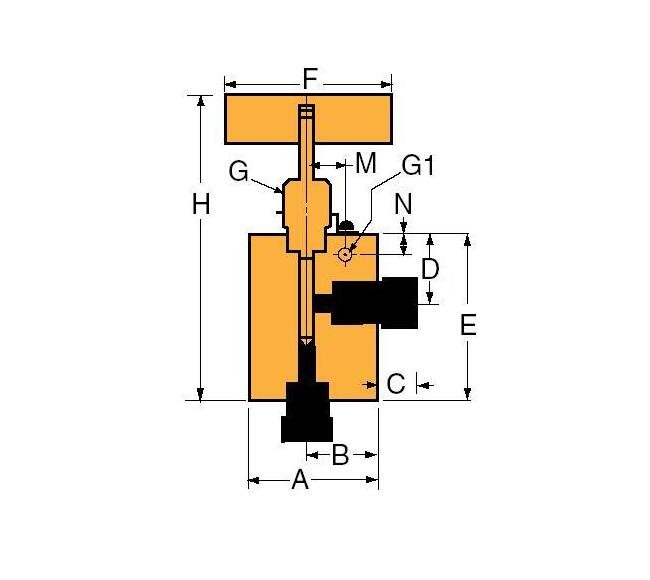

Product Specifications
Specifications A Width
2.25 in | 57.15 mm
Specifications Block Thickness
1.38 in | 35.05 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
F312C150
Specifications C Length
0.52 in | 13.21 mm
Specifications D Height
1.44 in | 36.58 mm
Specifications E Height
3.00 in | 76.20 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.12 in | 28.45 mm
Specifications H Height
6.05 in | 135.13 mm
Specifications M Length
0.94 in | 23.88 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
100000 psi | 6895 bar
Specifications Rated Cv
0.09
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.18 in | 30.0 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R100VM15071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard AE valves with Teflon packing may be operated to 450°F(232°C), and to 230°F (110°C) with nylon-leather packing.K - anti-vibration collet and gland assembly. For other packing options consult the factory.
