145-9 Series Mechanical High Pressure Test Plug

145-9 Series Mechanical High Pressure Test Plug

HIG-731418

Versatile 145-9 Mechanical High Pressure Test Plug for reliable isolation in testing and construction applications.

$349.99
$349.99
Sale

Initiate Order

145-9 Series Mechanical High Pressure Test Plug

145-9 Series Mechanical High Pressure Test Plug

$349.99

Quantity: 1

Claim Your Seller Account

145-9 Series Mechanical High Pressure Test Plug

145-9 Series Mechanical High Pressure Test Plug

$349.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 145-9 Series Mechanical High Pressure Test Plug is an essential tool for various applications, featuring a maximum pipe size of 14.875 inches. Designed with replaceable seals and constructed from lightweight aluminum, this plug ensures easy installation and a positive seal against line pressure. Suitable for force and water main projects, lift stations, nuclear cooling lines, fire protection systems, and more, this plug offers reliable isolation for testing and construction needs. With options for solid rubber or inflatable seals, versatility and durability are guaranteed for demanding tasks.

Product Specifications

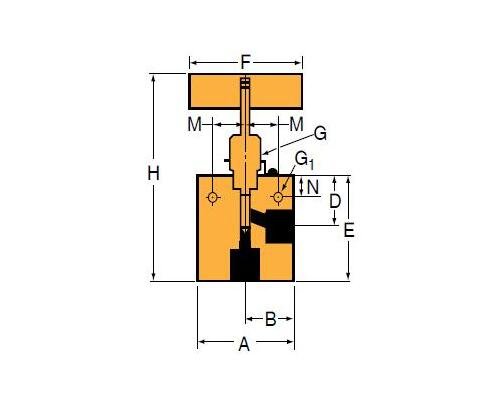

Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 35.05 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
Pipe
Specifications D Height
2.06 in | 52.32 mm
Specifications E Height
3.38 in | 87.85 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.43 in | 163.32 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.312 in | 7.92 mm
Specifications Pipe Size
1/2 in | 12.70 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
1.30
Specifications Stem Type
VEE
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add “R” to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.†TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).†Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
