145-9 Series Mechanical High Pressure Test Plug

145-9 Series Mechanical High Pressure Test Plug

HIG-370682

Ensure secure isolation and pressure testing with the 145-9 Series Mechanical High Pressure Test Plug by Petersen®.

$499.99
$499.99
Sale

Initiate Order

145-9 Series Mechanical High Pressure Test Plug

145-9 Series Mechanical High Pressure Test Plug

$499.99

Quantity: 1

Claim Your Seller Account

145-9 Series Mechanical High Pressure Test Plug

145-9 Series Mechanical High Pressure Test Plug

$499.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 145-9 Series Mechanical High Pressure Test Plug by Petersen® is designed for maximum pipe sizes up to 16.375 inches, with a robust aluminum construction. Available with solid rubber or inflatable seals, this plug ensures easy installation and replaceable seals. With a positive seal and the ability to hold against line pressures of up to 100 psig, it is ideal for force mains, lift stations, fire protection lines, and various industrial applications requiring reliable isolation for testing and construction purposes.

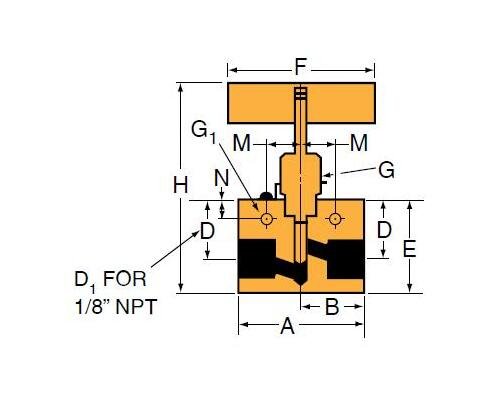

Product Specifications

Specifications A Width
2.50 in | 63.50 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.25 in | 31.75 mm
Specifications Connection Type
Pipe
Specifications D Height
1.41 in | 35.81 mm
Specifications E Height
2.00 in | 50.80 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
4.63 in | 117.60 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.219 in | 5.56 mm
Specifications Pipe Size
3/8 in | 9.53 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.75
Specifications Stem Type
VEE
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add “R” to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.†TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).†Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
