145 Series Mechanical High Pressure Test Plug - 5.625 Inch

Name: 145 Series Mechanical High Pressure Test Plug - 5.625 Inch
Brand: Hayward Flow Control
SKU: BUL-d04a5e
Price: 69.99 USD
Availability: OutOfStock

SKU:BUL-d04a5e

Reliable 5.625 Inch Mechanical High Pressure Test Plug for up to 100 psig. Easy installation and durable seals for various applications.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 145 Series 5.625 Inch Mechanical High Pressure Test Plug by Petersen® is engineered for maximum pipe sizes of 5.625 inches and can withstand head pressures up to 100 psig. This versatile plug, available with solid rubber or inflatable seals, offers easy installation, replaceable seals, and a lightweight aluminum construction. Ideal for force mains, lift stations, fire protection lines, and various projects requiring reliable isolation for testing. Ensure safety by following recommended usage guidelines for mechanical blocking to prevent property damage or injury.

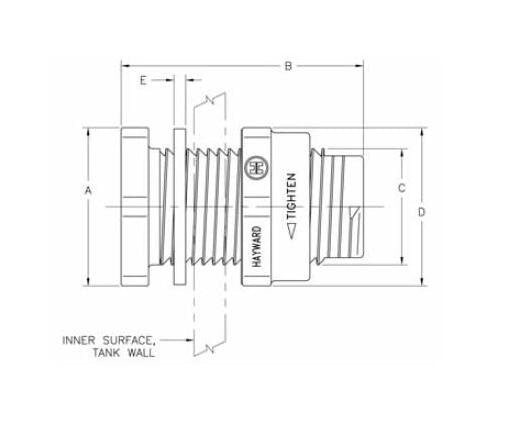

Product Specifications

Specifications A Across Flats

6.00 in

Specifications B

4.65 in

Specifications Body Material

PVC

Specifications C Installation Hole Size

4.50 in

Specifications D Across Flats

6.00 in

Specifications End Connection

Threaded x Threaded

Specifications E Gasket Thickness

0.25 in

Specifications Seals

FPM

Specifications Size

145 Series Mechanical High Pressure Test Plug - 5.625 Inch
