146-9 Series 10.45 in Bolt Type Medium Pressure Test Plug with By-Pass
146-9 Series 10.45 in Bolt Type Medium Pressure Test Plug with By-Pass
SKU:HIG-eef2c6
Dependable Bolt Type Test Plug for 10.45 in pipelines, featuring Nitrile seals for reliable and damage-free testing. Customizable for diverse needs.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
146-9 Series 10.45 in Bolt Type Medium Pressure Test Plug with By-Pass
$129.99
Quantity: 1
Claim Your Seller Account
146-9 Series 10.45 in Bolt Type Medium Pressure Test Plug with By-Pass
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass is a dependable solution for testing pipelines with a minimum inside diameter of 10.45 inches. Made with plated carbon steel and Nitrile seals for hydrocarbon resistance, this plug ensures reliable testing up to 250 psig without causing damage to the tube wall. With custom configurations available for various size, pressure, and temperature requirements, it offers versatility and durability for different applications.
Product Specifications

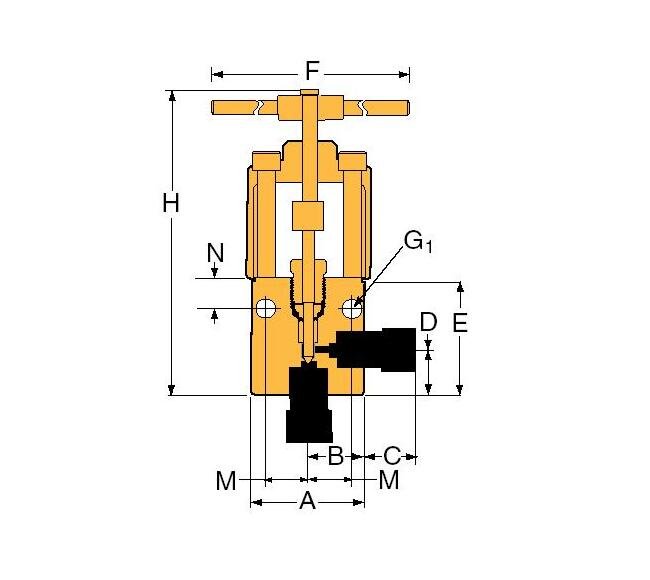

Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 34.93 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
F562C
Specifications C Length
0.56 in | 14.27 mm
Specifications D Height
1.5 in | 38.1 mm
Specifications E Height
3.50 in | 88.90 mm
Specifications F Length
13.00 in | 330.20 mm
Specifications G1 Diameter
0.50 in | 12.70 mm
Specifications H Height
8.81 in | 223.82 mm
Specifications M Length
1.13 in | 28.58 mm
Specifications N Height
0.88 in | 22.23 mm
Specifications Orifice Diameter
0.188 in | 4.78 mm
Specifications Outside Diameter Tube
9/16 in | 14.27 mm
Specifications Pressure Rating At Room Temperature
50000 psi | 3447 bar
Specifications Rated Cv
0.66
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C).B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C).
