146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
SKU:HIG-383917
Reliable medium pressure test plug with Nitrile seal and by-pass connection for pipeline testing up to 5.5 inches diameter. Customizable and safe to use.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
$149.99
Quantity: 1
Claim Your Seller Account
146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass offers a reliable solution for testing pipelines up to 5.5 inches in diameter with a rated pressure of 25 psig. Featuring a Nitrile seal for hydrocarbon resistance and a 1/2" NPT by-pass connection, this plug ensures secure testing without tube wall damage. Customizable with various seal materials and configurations, this plug is suitable for different pressure, temperature, and chemical requirements. Safety warning guidelines are included to prevent potential hazards during testing.
Product Specifications

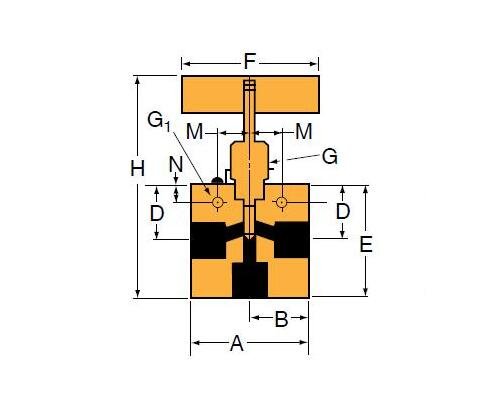

Specifications A Width
3.50 in | 88.90 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
1.75 in | 44.45 mm
Specifications Connection Type
Pipe
Specifications D Height
2.65 in | 67.31 mm
Specifications E Height
4.25 in | 107.95 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.44 in | 11.18 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.12 in | 28.45 mm
Specifications H Height
7.50 in | 190.50 mm
Specifications M Length
0.88 in | 22.35 mm
Specifications N Height
0.63 in | 16.00 mm
Specifications Orifice Diameter
0.438 in | 11.13 mm
Specifications Pipe Size
3/4 in | 19.05 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
2.50
Specifications Stem Type
VEE
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
