146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass - 0.625" ID
146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass - 0.625" ID
SKU:HIG-a9e204
Reliable 146-9 Series Bolt Type Test Plug for 0.625" ID pipes, offering secure and damage-free testing up to 250 psig. Customizable for specific needs.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass - 0.625" ID
$49.99
Quantity: 1
Claim Your Seller Account
146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass - 0.625" ID
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass offers a reliable solution for testing pipelines. Featuring a Nitrile seal for hydrocarbon resistance, this plug is designed for testing pipe and tubing up to 250 psig without causing damage. Customizable with various seal materials, configurations, and materials to meet specific requirements, this plug ensures easy installation and secure testing procedures to prevent property damage and injury.
Product Specifications

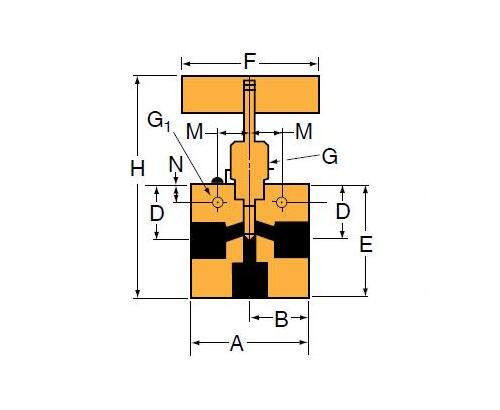

Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 35.05 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
Pipe
Specifications D Height
2.06 in | 52.32 mm
Specifications E Height
3.38 in | 85.85 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.31 in | 160.27 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.312 in | 7.92 mm
Specifications Pipe Size
1/2 in | 12.70 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
1.30
Specifications Stem Type
REG
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).â Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
