146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
SKU:HIG-7b9f2a
Reliable 146-9 Series Test Plug with By-Pass for pipelines, featuring Nitrile seal & custom configurations for varied requirements.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
$99.99
Quantity: 1
Claim Your Seller Account
146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass is a reliable solution for testing pipelines with a minimum inside diameter of 0.44 inches. Featuring a sturdy construction with plated carbon steel and a Nitrile seal, this plug ensures hydrocarbon resistance for seamless testing up to 300 psig. With custom configurations available, including different seal materials and additional features like valves and remote placement systems, this plug caters to various size, pressure, and chemical requirements. Designed for safety, efficiency, and ease of use, this plug is a versatile option for institutional and government buyers.

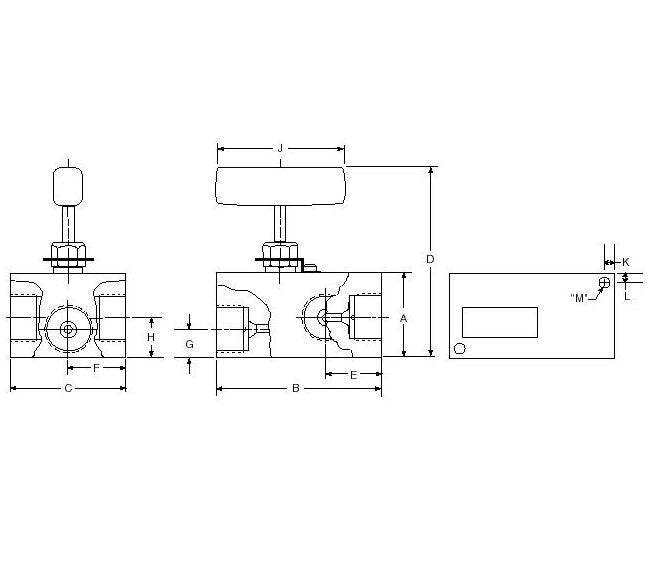

Product Specifications
Specifications A Height
2.00 in | 50.80 mm
Specifications B Length
3.12 in | 79.25 mm
Specifications Connection Size
3/8 in | 9.53 mm
Specifications Connection Type
SF375CX
Specifications C Width
2.00 in | 50.80 mm
Specifications D Height
4.52 in | 114.80 mm
Specifications E Length
1.13 in | 28.58 mm
Specifications F Length
1.00 in | 25.4 mm
Specifications G Height
0.50 in | 12.70 mm
Specifications H Height
0.94 in | 23.83 mm
Specifications J Length
3.00 in | 76.20 mm
Specifications K Mounting Dimension
0.25 in | 6.40 mm
Specifications L Mounting Dimension
0.25 in | 6.40 mm
Specifications M Mounting Diameter
0.28 in | 7.10 mm
Specifications Orifice Size
0.125 in | 3.18 mm
Specifications Pressure Rating At Room Temperature
20000 psi | 1379 bar
Specifications Rated Cv
0.23
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
Wellhead Gauge Valve
