146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass - 1.51" Minimum Pipe ID
146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass - 1.51" Minimum Pipe ID
SKU:HIG-e6e44b
Reliable 146-9 Series Test Plug with By-Pass for pipelines, featuring Nitrile seal and custom configurations for diverse applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass - 1.51" Minimum Pipe ID
$89.99
Quantity: 1
Claim Your Seller Account
146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass - 1.51" Minimum Pipe ID
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass is a reliable solution for testing pipelines. With a minimum pipe inside diameter of 1.51 inches, this plug features a Nitrile seal for hydrocarbon resistance. It is designed for pressure ratings of up to 150 psig, making it ideal for applications requiring testing up to 250 psig. Custom configurations with various seal materials are available to meet specific requirements. Safety is paramount with mechanical plug warnings included.

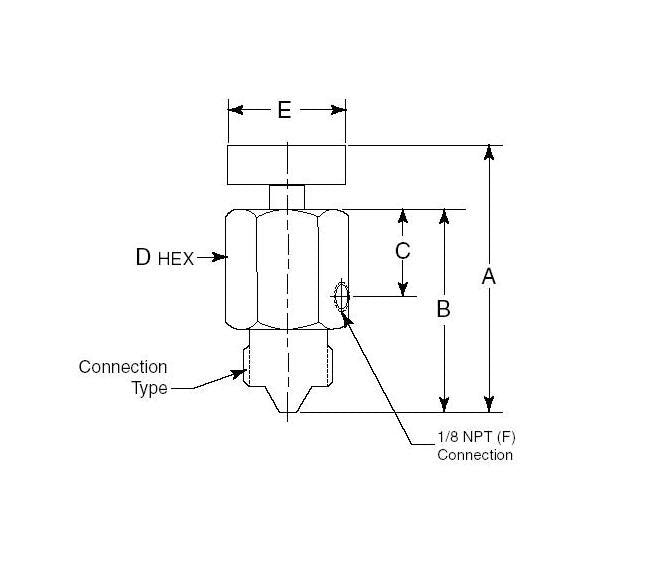

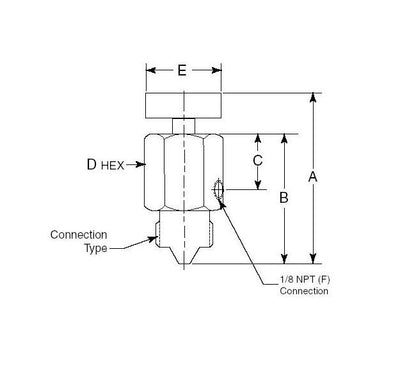

Product Specifications
Specifications A Length
3.44 in | 87.38 mm
Specifications B Length
2.61 in | 66.29 mm
Specifications Connection Size
9/16 in | 14.29 mm
Specifications Connection Type
M562C
Specifications C Length
1.12 in | 28.45 mm
Specifications D Hex
1.38 in | 35.05 mm
Specifications E Length
1.50 in | 38.1 mm
Specifications Orifice Size
0.093 in | 2.36 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Valve Pattern
Bleed Valve
