146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass

Name: 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
Brand: Parker / Autoclave Engineers
SKU: HIG-f536ac
Price: 69.99 USD
Availability: OutOfStock

SKU:HIG-f536ac

Reliable test plug for pipelines with Nitrile seal, customizable configurations, and enhanced safety measures.

$69.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass is a Petersen® product designed for simple and reliable testing of pipelines. With a minimum pipe inside diameter of 2.31 inches and rated pressure of 100 psig, this test plug features a Nitrile seal for hydrocarbon resistance, making it ideal for applications up to 250 psig without causing damage to the tube walls. Customizable with various seal materials and configurations, this plug ensures a secure and efficient testing process with enhanced safety measures.

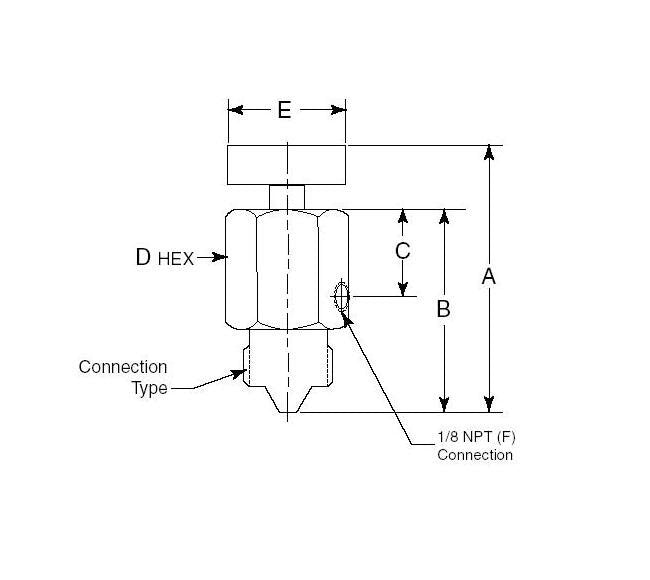

Product Specifications

Specifications A Length

3.23 in | 82.04 mm

Specifications B Length

2.42 in | 61.47 mm

Specifications Connection Size

3/8 in | 9.53 mm

Specifications Connection Type

SM375CX

Specifications C Length

1.12 in | 28.45 mm

Specifications D Hex

1.38 in | 35.05 mm

Specifications E Length

1.50 in | 38.1 mm

Specifications Orifice Size

0.093 in | 2.36 mm

Specifications Pressure Rating At Room Temperature

20000 psi | 1379 bar

Specifications Valve Pattern

Bleed Valve
