146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
SKU:HIG-9e4e01
Reliable Bolt Type Test Plug with Nitrile Seal for 1.38 in Pipelines, Custom Configurations Available
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
$49.99
Quantity: 1
Claim Your Seller Account
146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass is a reliable solution designed for testing pipelines with a minimum inside diameter of 1.38 inches. This plug features a Nitrile seal for hydrocarbon resistance, rated pressure of 200 psig, and an overall length of 8 inches. With custom configurations available for various seal materials, pressure, temperature, and chemical requirements, this plug offers versatility and durability for institutional and government procurement needs.
Ready to Grow Without Cash Flow Constraints?

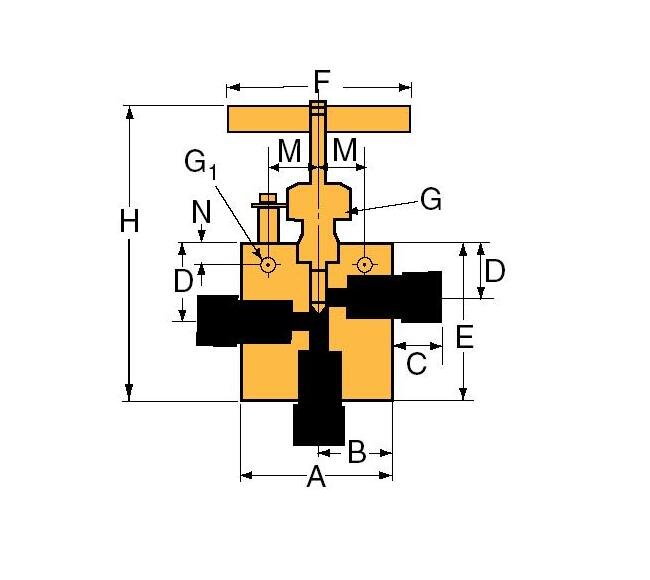

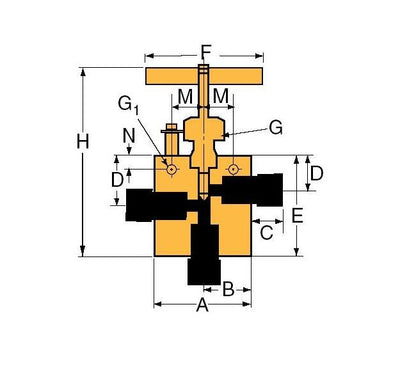

Product Specifications
Specifications A Width
1.38 in | 34.93 mm
Specifications Block Thickness
0.56 in | 14.27 mm
Specifications B Length
0.69 in | 17.45 mm
Specifications Connection Type
W125
Specifications C Length
0.45 in | 11.43 mm
Specifications D1 Height
0.56 in | 14.30 mm
Specifications D Height
0.81 in | 20.65 mm
Specifications E Height
1.44 in | 36.50 mm
Specifications F Length
1.75 in | 44.45 mm
Specifications G1 Bracket Mounting Hole Size
0.16 in | 4.04 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.56 in | 14.27 mm
Specifications H Height
2.69 in | 68.30 mm
Specifications M Length
0.45 in | 11.49 mm
Specifications N Height
0.20 in | 5.16 mm
Specifications Orifice Diameter
0.078 in | 1.98 mm
Specifications Outside Diameter Tube
1/8 in | 3.18 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.11
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance 0
Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
