146-9 Series Bolt Type Test Plug with By-Pass
146-9 Series Bolt Type Test Plug with By-Pass
SKU:HIG-e9b4fb
Reliable medium pressure test plug with Nitrile seal for pipelines. Customizable for various applications and safety-focused design.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
146-9 Series Bolt Type Test Plug with By-Pass
$69.99
Quantity: 1
Claim Your Seller Account
146-9 Series Bolt Type Test Plug with By-Pass
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Bolt Type Test Plug with By-Pass is designed for reliable testing of pipelines with a minimum inside diameter of 0.562 inches. Featuring a Nitrile seal for hydrocarbon resistance and rated pressure of 300 psig, this medium pressure plug ensures secure testing up to 250 psig. Customizable with various seal materials, these plugs offer versatility for different size, pressure, temperature, and chemical requirements. With a focus on safety, the mechanical plug warning emphasizes proper usage to prevent property damage or injury.

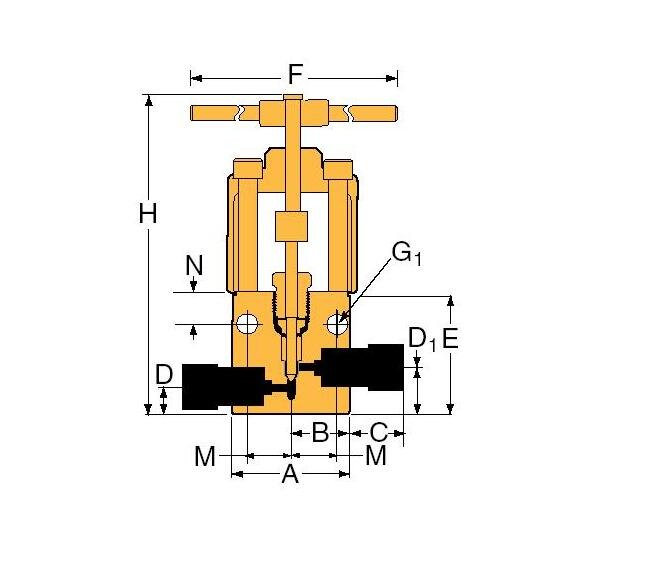

Product Specifications
Specifications A Width
4.13 in | 104.78 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.06 in | 52.39 mm
Specifications Connection Type
SF1000CX
Specifications C Length
0.63 in | 15.88 mm
Specifications D1 Height
1.88 in | 47.75 mm
Specifications D Height
0.88 in | 22.10 mm
Specifications E Height
4.13 in | 104.78 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Diameter
0.28 in | 7.11 mm
Specifications H Height
10.00 in | 254.00 mm
Specifications M Length
1.50 in | 38.10 mm
Specifications N Height
1.13 in | 28.58 mm
Specifications Orifice Diameter
0.562 in | 14.27 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
3.15
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
1.38 in | 35.0 mm
Specifications Valve Pattern
2-Way Straight
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C).B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C).
