146-9 Series Bolt Type Test Plug with By-Pass - Medium Pressure
146-9 Series Bolt Type Test Plug with By-Pass - Medium Pressure
SKU:HIG-89bb71
Durable 146-9 Series Test Plug with Fluoro-Elastomer seal for reliable, damage-free pipeline testing at 150 psig. Customizable configurations available.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
146-9 Series Bolt Type Test Plug with By-Pass - Medium Pressure
$89.99
Quantity: 1
Claim Your Seller Account
146-9 Series Bolt Type Test Plug with By-Pass - Medium Pressure
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Bolt Type Test Plug combines durability with versatility for efficient pipeline testing. Featuring a Fluoro-Elastomer seal for hydrocarbon resistance, this plug is designed for easy installation and a secure seal. With a rated pressure of 150 psig, this plug ensures reliable testing without tube wall damage. Customizable configurations and various seal material options make it adaptable to diverse requirements. Mechanical plug warnings emphasize safety precautions for optimal performance and user protection.
Product Specifications

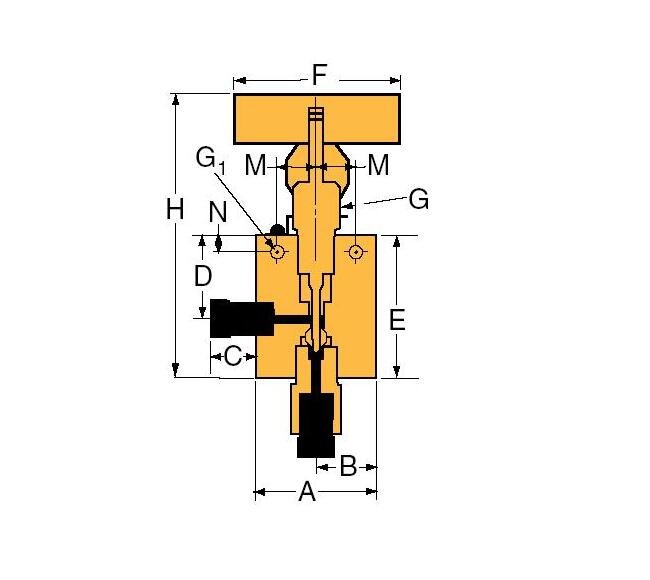

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
1.00 in | 25.40 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
F250C
Specifications C Length
0.50 in | 12.70 mm
Specifications D Height
1.31 in | 33.27 mm
Specifications E Height
2.63 in | 66.80 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.58 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.97 in | 24.63 mm
Specifications H Height
6.06 in | 153.92 mm
Specifications M Length
0.69 in | 17.25 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.062 in | 1.57 mm
Specifications Outside Diameter Tube
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
60000 psi | 4137 bar
Specifications Rated Cv
0.004
Specifications Tubing Engagement Depth
0.50 in | 12.7 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R60VRMM)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing and/or extended stuffing box is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.See Needle Valve options for stem and seat coatings for erosive service.
