146-9 Series Medium Pressure Silicone Test Plug with By-Pass
146-9 Series Medium Pressure Silicone Test Plug with By-Pass
SKU:HIG-701787
Reliable medium pressure silicone test plug with by-pass for secure pipeline testing up to 250 psig without tube wall damage. Custom configurations available.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
146-9 Series Medium Pressure Silicone Test Plug with By-Pass
$39.99
Quantity: 1
Claim Your Seller Account
146-9 Series Medium Pressure Silicone Test Plug with By-Pass
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Medium Pressure Silicone Test Plug with By-Pass is designed for simple and reliable testing of pipelines up to 250 psig. With a Nitrile seal for optimal contact and a variety of custom configurations available, this plug ensures secure testing without tube wall damage. Made with durable materials and featuring a By-Pass connection in NPT, this plug offers versatility and efficiency for various applications.
Product Specifications

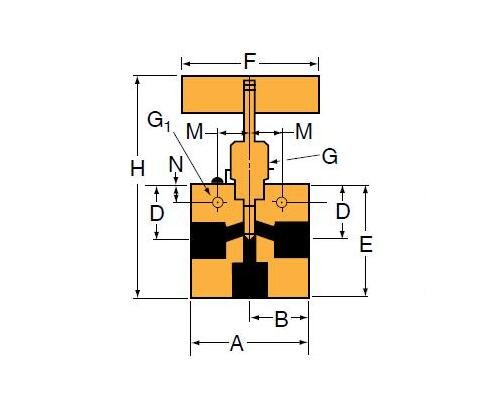

Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
Pipe
Specifications D Height
1.41 in | 35.81 mm
Specifications E Height
2.44 in | 61.98 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.22 in | 5.59 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
4.81 in | 122.17 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.203 in | 5.16 mm
Specifications Pipe Size
1/4 in | 6.35 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.63
Specifications Stem Type
VEE
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
