146-9 Series Medium Pressure Silicone Test Plug with By-Pass
146-9 Series Medium Pressure Silicone Test Plug with By-Pass
SKU:HIG-1c245c
Reliable and customizable medium pressure test plug for pipeline testing up to 200 psig, designed for simple and damage-free use.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
146-9 Series Medium Pressure Silicone Test Plug with By-Pass
$89.99
Quantity: 1
Claim Your Seller Account
146-9 Series Medium Pressure Silicone Test Plug with By-Pass
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Medium Pressure Silicone Test Plug with By-Pass is a reliable solution for pipeline testing. With a minimum pipe inside diameter of 1.26 inches, rated up to 200 psig, and customizable configurations for various seal materials and by-pass options, this plug ensures simple and damage-free testing up to 250 psig. Made with quality materials and a mechanical plug warning for safety, this product is designed for efficiency and performance in testing pipe and tubing.
Product Specifications

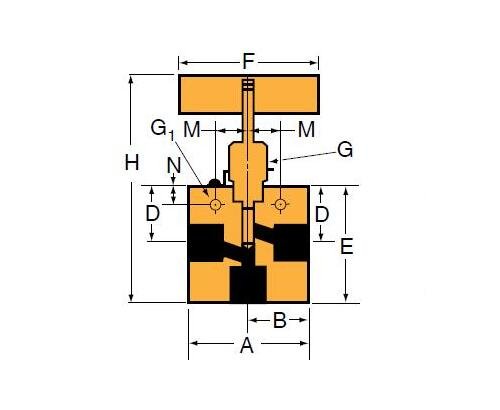

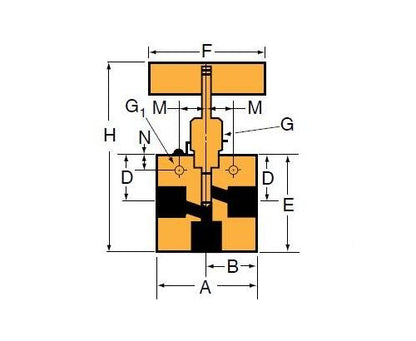

Specifications A Width
3.50 in | 88.90 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
1.75 in | 44.45 mm
Specifications Connection Type
Pipe
Specifications D Height
2.65 in | 67.31 mm
Specifications E Height
4.62 in | 117.35 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.44 in | 11.18 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.12 in | 28.45 mm
Specifications H Height
7.88 in | 200.15 mm
Specifications M Length
0.88 in | 22.35 mm
Specifications N Height
0.63 in | 16.00 mm
Specifications Orifice Diameter
0.438 in | 11.13 mm
Specifications Pipe Size
3/4 in | 19.05 mm
Specifications Pressure Rating At Room Temperature
10000 psi | 690 bar
Specifications Rated Cv
2.50
Specifications Stem Type
REG
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
