146-9 Series Medium Pressure Silicone Test Plug with By-Pass
146-9 Series Medium Pressure Silicone Test Plug with By-Pass
SKU:HIG-970fff
The 146-9 Series Silicone Test Plug - reliable, easy testing up to 100 psig, Nitrile seal for enhanced durability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
146-9 Series Medium Pressure Silicone Test Plug with By-Pass
$49.99
Quantity: 1
Claim Your Seller Account
146-9 Series Medium Pressure Silicone Test Plug with By-Pass
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Medium Pressure Silicone Test Plug with By-Pass is engineered for simple and reliable testing of pipelines up to 100 psig (7 bar). Featuring a Nitrile seal for enhanced hydrocarbon resistance, this test plug, designed by Petersen®, offers a rated pressure of 100 psig (7 bar) and a minimum pipe inside diameter of 2.51 inches (63.7 mm). Custom configurations are available with various seal materials to meet specific pressure, temperature, and chemical requirements. This Bolt Type Plug ensures easy installation and secure tube testing without damage.
Product Specifications

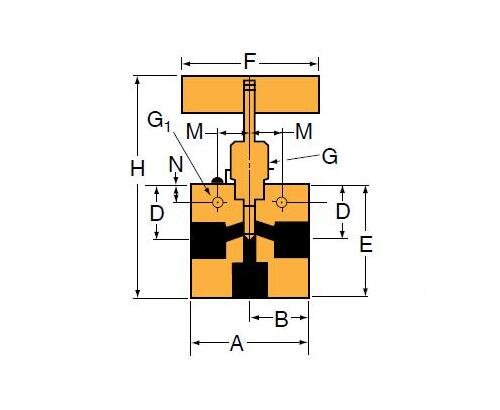

Specifications A Width
3.00 in | 76.20 mm
Specifications Block Thickness
1.38 in | 35.05 mm
Specifications B Length
1.50 in | 38.10 mm
Specifications Connection Type
Pipe
Specifications D Height
2.06 in | 52.32 mm
Specifications E Height
3.38 in | 85.85 mm
Specifications F Length
4.00 in | 101.60 mm
Specifications G1 Bracket Mounting Hole Size
0.34 in | 8.64 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
6.31 in | 160.27 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.50 in | 12.70 mm
Specifications Orifice Diameter
0.312 in | 7.92 mm
Specifications Pipe Size
1/2 in | 12.70 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
1.30
Specifications Stem Type
VEE
Specifications Valve Pattern
3-Way / 1 on Pressure
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: R15P4071 or R10P12071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing and/or extended stuffing box are available for service from 0°F (-17.8°C) to 650°F (343°C) by adding the following suffixes to catalog order number.â TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 650°F (343°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).â Autoclave Engineers does not recommend pipe connections below 0°F (-17.8°C) or above 400°F (204°C). For additional valve options, contact your Sales Representative.
