146-9 Series Medium Pressure Silicone Test Plug with By-Pass
146-9 Series Medium Pressure Silicone Test Plug with By-Pass
SKU:HIG-43d904
Reliable 146-9 Series Silicone Test Plug for secure and damage-free pipe testing up to 25 psig, perfect for institutional and government use.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
146-9 Series Medium Pressure Silicone Test Plug with By-Pass
$129.99
Quantity: 1
Claim Your Seller Account
146-9 Series Medium Pressure Silicone Test Plug with By-Pass
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Medium Pressure Silicone Test Plug with By-Pass is a durable pipeline testing solution ideal for institutional and government applications. Featuring a reliable Nitrile seal for hydrocarbon resistance, this plug ensures a secure fit with a minimum pipe inside diameter of 4.95 inches. Designed for pressure ratings up to 25 psig, it offers a seamless testing experience without tube wall damage, making it compliant with industry standards.
Product Specifications

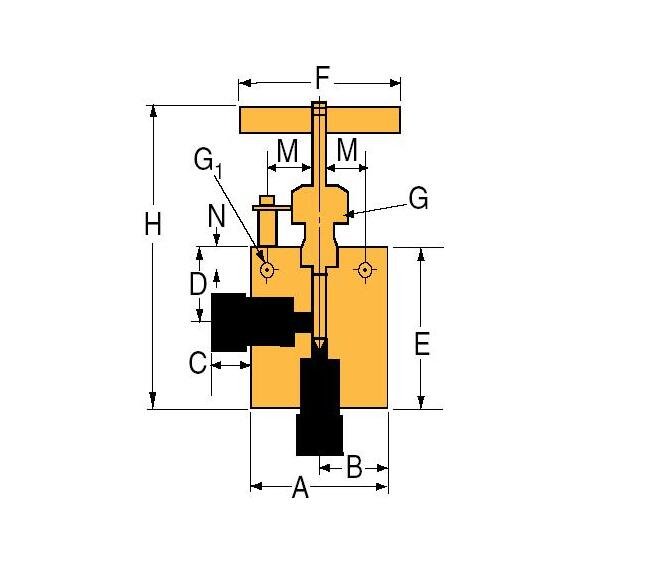

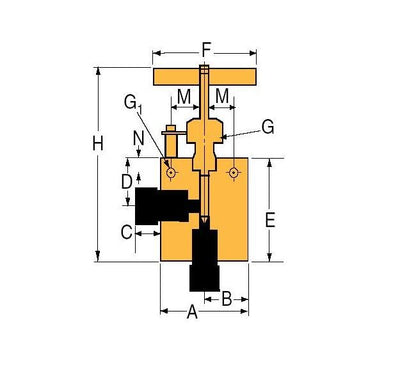

Specifications A Width
1.38 in | 34.93 mm
Specifications Block Thickness
0.56 in | 14.27 mm
Specifications B Length
0.69 in | 17.45 mm
Specifications Connection Type
W125
Specifications C Length
0.45 in | 11.43 mm
Specifications D Height
0.56 in | 14.3 mm
Specifications E Height
1.38 in | 34.93 mm
Specifications F Length
1.75 in | 44.45 mm
Specifications G1 Bracket Mounting Hole Size
0.16 in | 4.04 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.56 in | 14.27 mm
Specifications H Height
2.63 in | 66.75 mm
Specifications M Length
0.45 in | 11.49 mm
Specifications N Height
0.20 in | 5.16 mm
Specifications Orifice Diameter
0.078 in | 1.98 mm
Specifications Outside Diameter Tube
1/8 in | 3.18 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.11
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
