146-9 Series Medium Pressure Test Plug with By-Pass
146-9 Series Medium Pressure Test Plug with By-Pass
SKU:HIG-296a7a
Reliable and customizable test plug for pipelines with 0.28in minimum inside diameter, featuring Nitrile seal for hydrocarbon resistance and easy installation.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
146-9 Series Medium Pressure Test Plug with By-Pass
$49.99
Quantity: 1
Claim Your Seller Account
146-9 Series Medium Pressure Test Plug with By-Pass
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass offers a reliable solution for testing pipelines with a minimum inside diameter of 0.28 inches. With a Nitrile seal for hydrocarbon resistance, this plug can withstand pressures up to 250 psig (17 bar). Designed for easy installation and testing without damaging the tube wall, this plug ensures a secure fit and efficient testing process. Customizable configurations, including different seal materials and materials, make it adaptable to various requirements.
Product Specifications

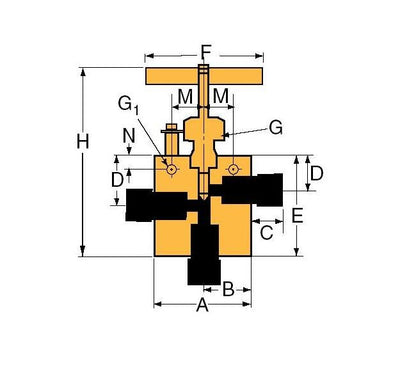

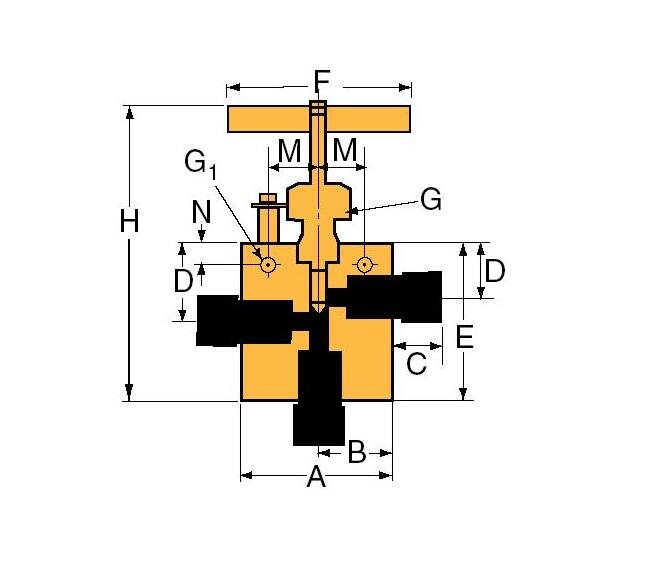

Specifications A Width
1.38 in | 34.93 mm
Specifications Block Thickness
0.56 in | 14.27 mm
Specifications B Length
0.69 in | 17.45 mm
Specifications Connection Type
W062
Specifications C Length
0.45 in | 11.43 mm
Specifications D1 Height
0.56 in | 14.30 mm
Specifications D Height
0.81 in | 20.65 mm
Specifications E Height
1.44 in | 36.50 mm
Specifications F Length
1.75 in | 44.45 mm
Specifications G1 Bracket Mounting Hole Size
0.16 in | 4.04 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.56 in | 14.27 mm
Specifications H Height
2.69 in | 68.30 mm
Specifications M Length
0.45 in | 11.49 mm
Specifications N Height
0.20 in | 5.16 mm
Specifications Orifice Diameter
0.055 in | 1.40 mm
Specifications Outside Diameter Tube
1/16 in | 1.57 mm
Specifications Pressure Rating At Room Temperature
15000 psi | 1034 bar
Specifications Rated Cv
0.05
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
Specifications Valve Pattern
3-Way / 2 on Pressure
Valve Maintenance 0
Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C).High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.â TG standard valve with Teflon glass packing to 600°F (316°C).â Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F (343°C). For additional valve options, contact your Sales Representative.
