146-9 Series Medium Pressure Test Plug with By-Pass - 0.69in ID
146-9 Series Medium Pressure Test Plug with By-Pass - 0.69in ID
SKU:HIG-af5699
Reliable medium pressure test plug with Nitrile seal for 0.69in ID pipelines, rated up to 250 psig.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
146-9 Series Medium Pressure Test Plug with By-Pass - 0.69in ID
$49.99
Quantity: 1
Claim Your Seller Account
146-9 Series Medium Pressure Test Plug with By-Pass - 0.69in ID
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Bolt Type Medium Pressure Test Plug with By-Pass offers a reliable solution for testing pipelines with a minimum inside diameter of 0.69 inches. Certified to withstand pressures up to 250 psig, this plug features a Nitrile seal for hydrocarbon resistance, ensuring safe and efficient testing without damaging the pipe. Custom configurations with various seal materials are available to meet specific size, pressure, temperature, and chemical requirements. With options for valves, remote placement systems, and more, this plug is highly versatile for diverse applications.
Product Specifications

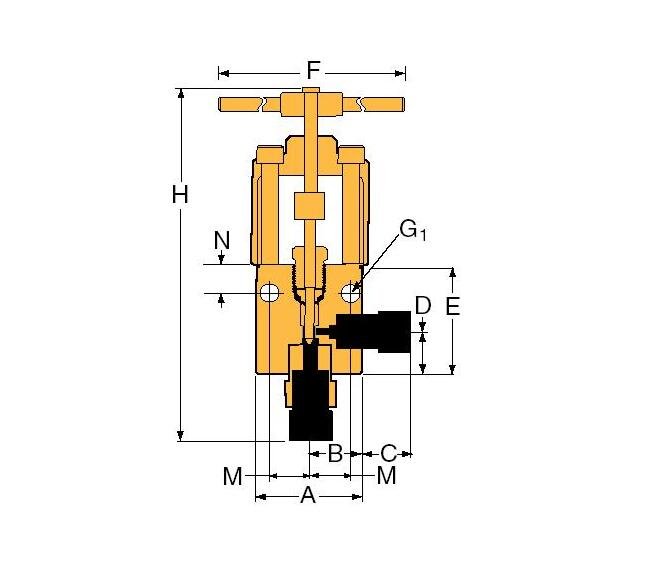

Specifications A Width
4.13 in | 104.9 mm
Specifications Block Thickness
1.75 in | 44.45 mm
Specifications B Length
2.07 in | 52.45 mm
Specifications Connection Type
F1000C43
Specifications C Length
0.72 in | 18.29 mm
Specifications D Height
2.13 in | 54.10 mm
Specifications E Height
4.38 in | 111.25 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Diameter
0.28 in | 7.11 mm
Specifications H Height
11.95 in | 303.53 mm
Specifications M Length
1.50 in | 38.10 mm
Specifications N Height
1.00 in | 25.40 mm
Specifications Orifice Diameter
0.375 in | 9.53 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
43000 psi | 2965 bar
Specifications Rated Cv
2.30
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
1.38 in | 35.0 mm
Specifications Valve Pattern
2-Way Angle / Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R50Y9071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated to 450°F (232°C). High temperature packing is available for service from 0°F (-17.8°C) to 600°F (316°C) by adding the following suffixes to catalog order number.TG standard valve with Teflon glass packing to 600°F (316°C).B standard valve with cryogenic trim materials and Teflon packing to -100°F (-73°C).
