146-9 Series Medium Pressure Test Plug with By-Pass
146-9 Series Medium Pressure Test Plug with By-Pass
SKU:HIG-88def7
Reliable medium pressure test plug with Nitrile seal for pipeline testing up to 250 psig. Customizable configurations available.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
146-9 Series Medium Pressure Test Plug with By-Pass
$89.99
Quantity: 1
Claim Your Seller Account
146-9 Series Medium Pressure Test Plug with By-Pass
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 146-9 Series Medium Pressure Test Plug with By-Pass by Petersen® offers a reliable solution for testing pipelines, featuring a Nitrile seal for hydrocarbon resistance. With a minimum pipe inside diameter of 1.88 inches and a rated pressure of 150 psig, this plug is designed for simple and damage-free testing of pipe and tubing up to 250 psig. Customizable configurations and various seal materials ensure compatibility with diverse size, pressure, temperature, and chemical requirements. Mechanical plug warning included.

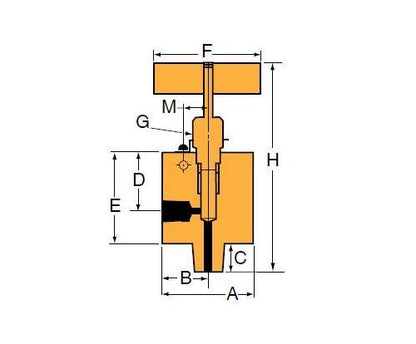

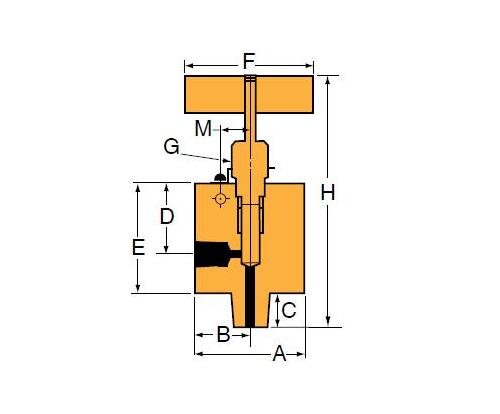

Product Specifications
Specifications A Width
2.00 in | 50.80 mm
Specifications Block Thickness
0.75 in | 19.05 mm
Specifications B Length
1.00 in | 25.40 mm
Specifications Connection Type
Tube
Specifications C Length
0.81 in | 20.57 mm
Specifications D Height
1.19 in | 20.57 mm
Specifications E Height
1.63 in | 41.40 mm
Specifications F Length
1.5 in | 38.1 mm
Specifications G Packing Gland Mounting Hole Drill Size
0.75 in | 19.05 mm
Specifications H Height
4.75 in | 120.65 mm
Specifications M Length
0.62 in | 15.75 mm
Specifications Orifice Diameter
0.094 in | 2.39 mm
Specifications Pipetube
1/8 in | 3.18 mm
Specifications Stem Type
VEE
Specifications Tubing Engagement Depth
0.47 in | 11.9 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add âRâ to the front of valve catalog number for proper repair kit. (Example: RBTV4F2L1)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Standard Autoclave valves with Teflon packing may be operated to 450°F (232°C). R regulating stem Autoclave Engineers does not recommend compression sleeve connections below 0°F (-17.8°C) or above 650°F(343°C). For additional valve options, contact your Sales Representative.
